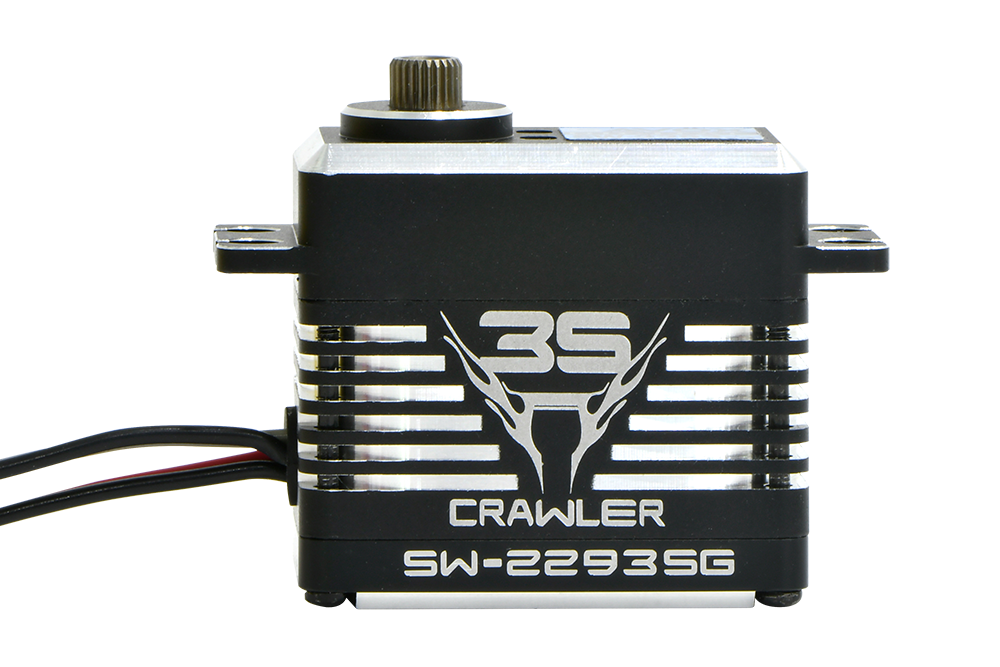

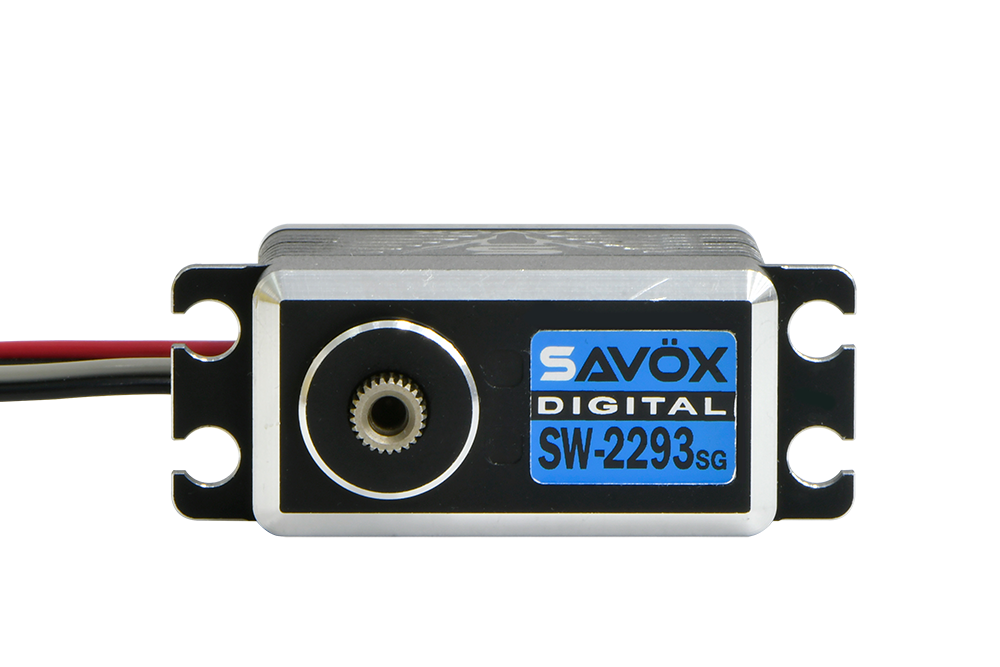

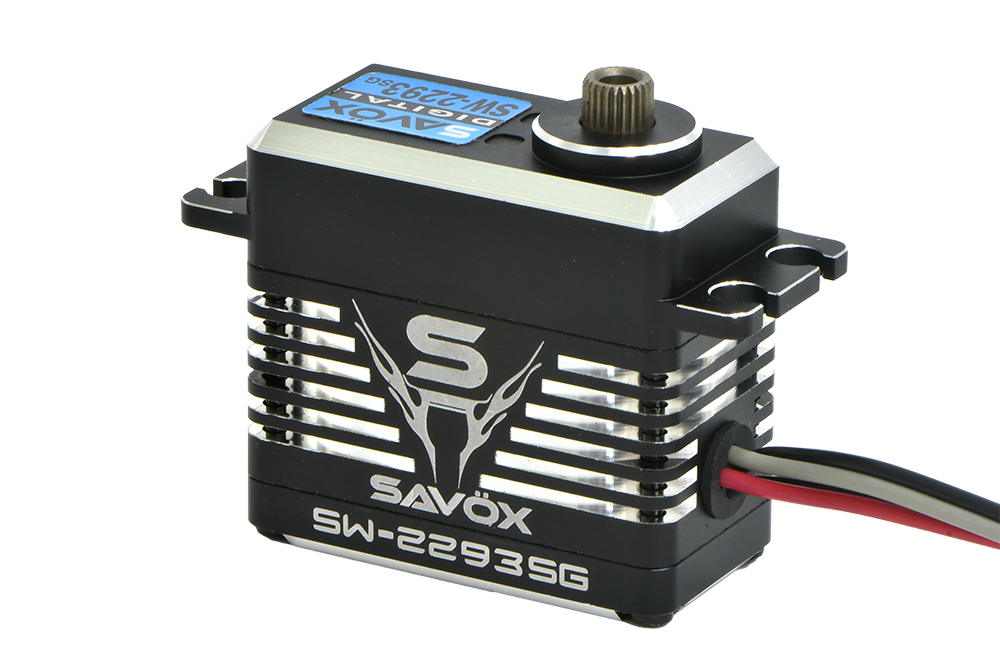

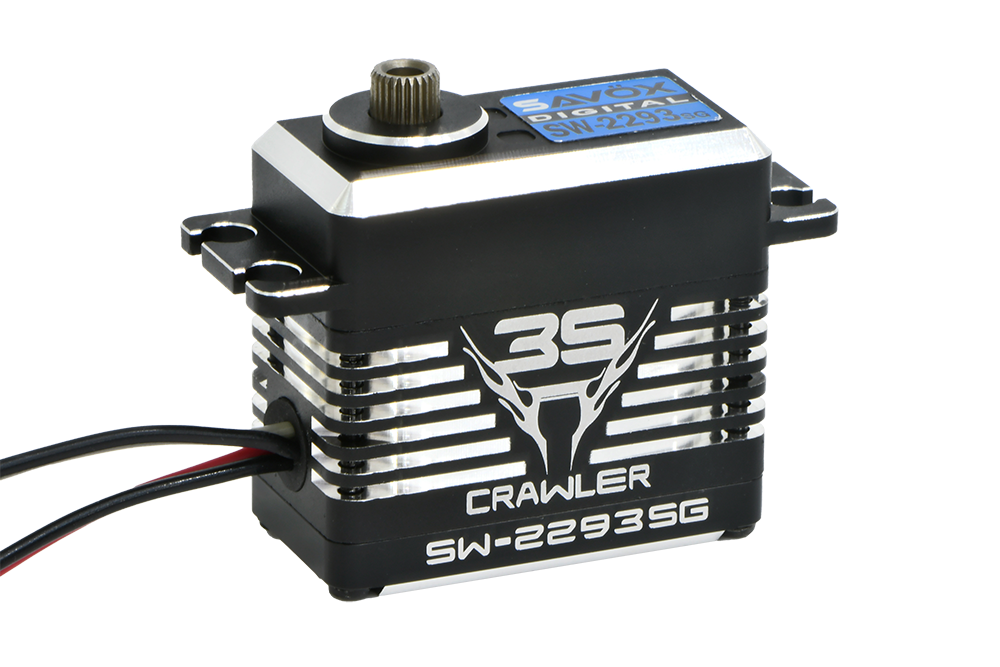

SW-2293SG

75.0 kg/cm |0.11 s/60° |12.6V

Patented Lightweight Brushless

Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLUE LINE
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage12.6V
Speed0.11 s/60°
Torque75.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWaterproof (IP67)
Dimensions41 x 21 x 39.9 mm
Weight90 g
Gear TypeSpecialized Steel
SW-2293SG
SW-2293SG

Direct 3S Power

Runs straight from your LiPo — no BEC bottleneck, no compromises.

High Torque Output

75 kg/cm at 12.6V, delivering strength for demanding crawler applications.

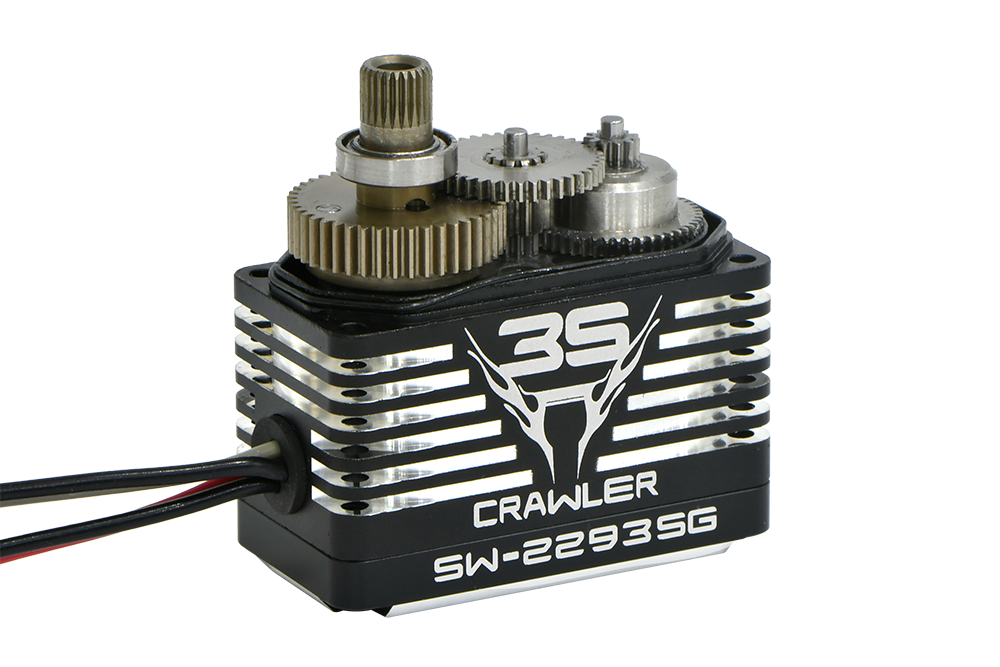

Steel Gear Durability

Rugged geartrain engineered to handle shock loads and heavy-duty crawling.

IP67 Waterproof

Built to withstand mud, water, and extreme trail conditions.

Direct Power, 3S Ready: SW-2293SG

Andy introduces the SW-2293SG — a direct-power servo designed for crawlers using 3S LiPo setups.

Watch to learn about the separate power/signal wiring and why this format delivers more torque.

Direct Power
Built for 3S Crawlers

70+ kg/cm torque — IP67 waterproof — steel gears

BLUE LINE

Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain.

With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.

Engineered for crawling strength and reliability with direct 3S LiPo power.

Size

Full specification

Line
Application
Servo Size
Operating Voltage
Speed @12.6V
Torque @12.6V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLUE LINE
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage12.6V
Speed @12.6V0.11 s/60°
Torque @12.6V75.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWaterproof (IP67)
Dimensions41 x 21 x 39.9 mm
Weight90 g
Gear TypeSpecialized Steel
CompabilitySanwa SUR, SSR; Futaba UR, SR
PCB Board32-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @12.6V
Operating Current @12.6V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~180° (when 600→2400 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing3x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length450 ±5 mm
ConnectorJR Connector
Stall Current @12.6V6500 mA
Operating Current @12.6V100 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
