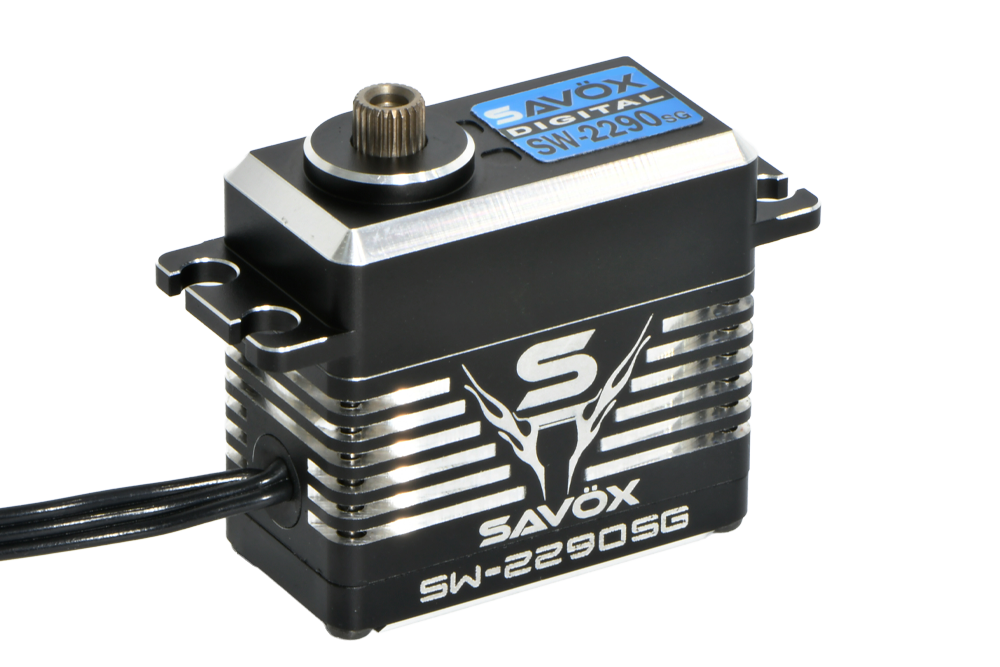

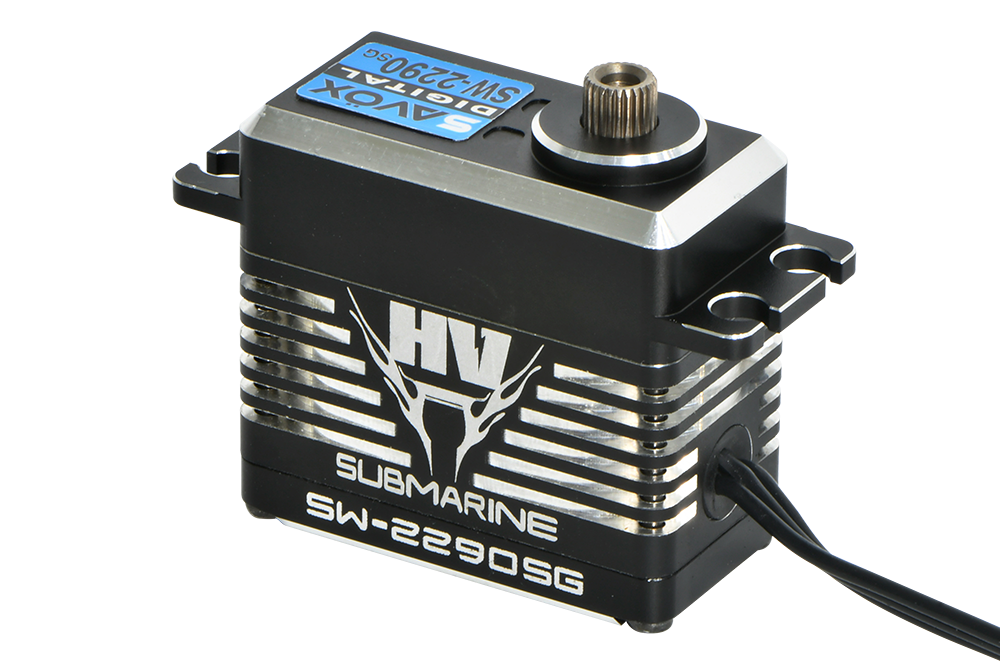

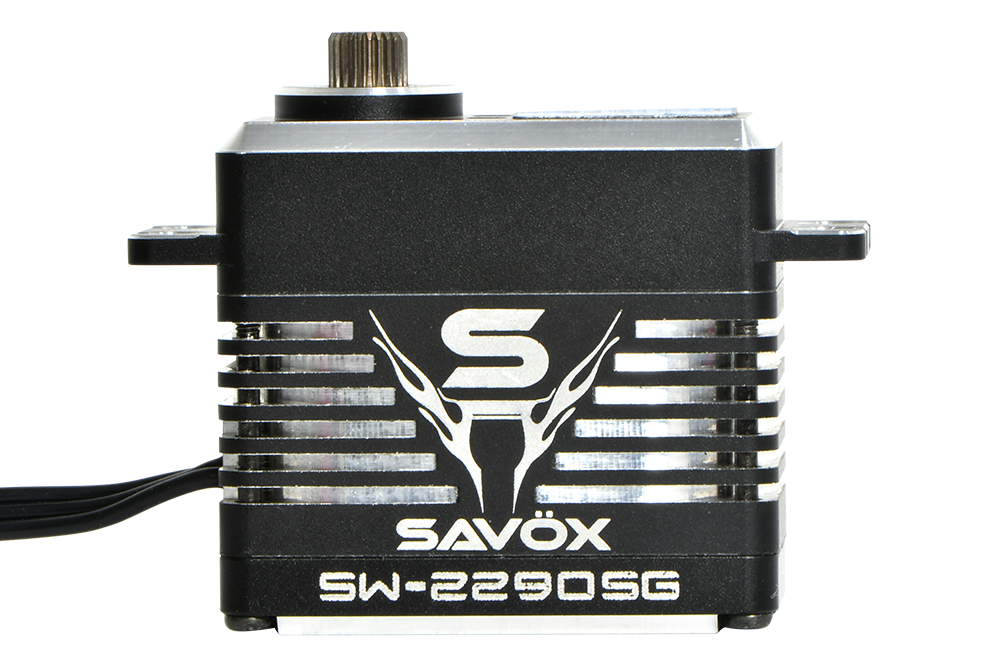

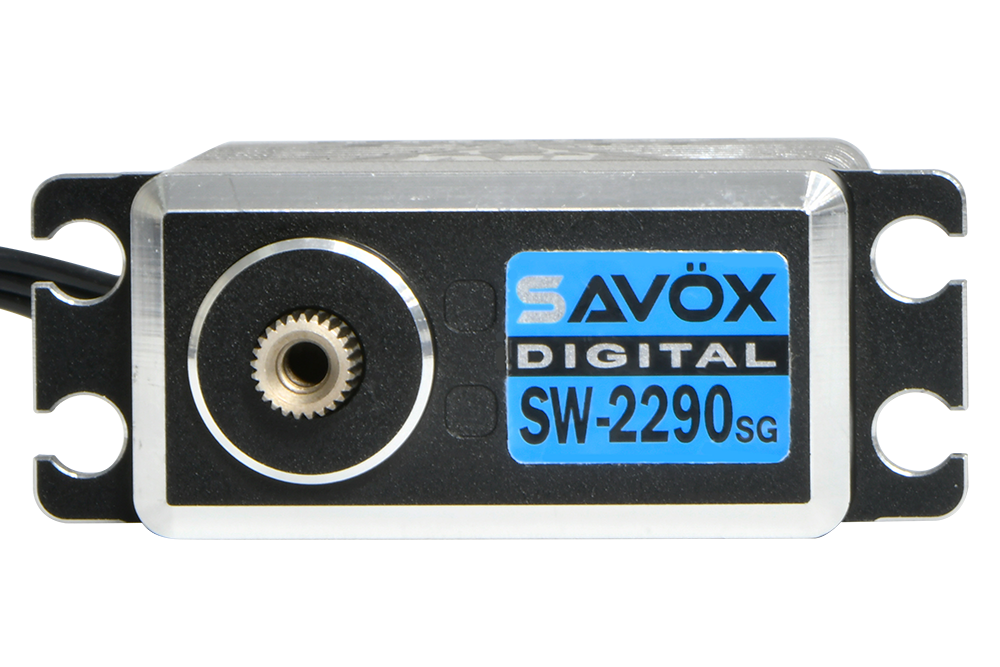

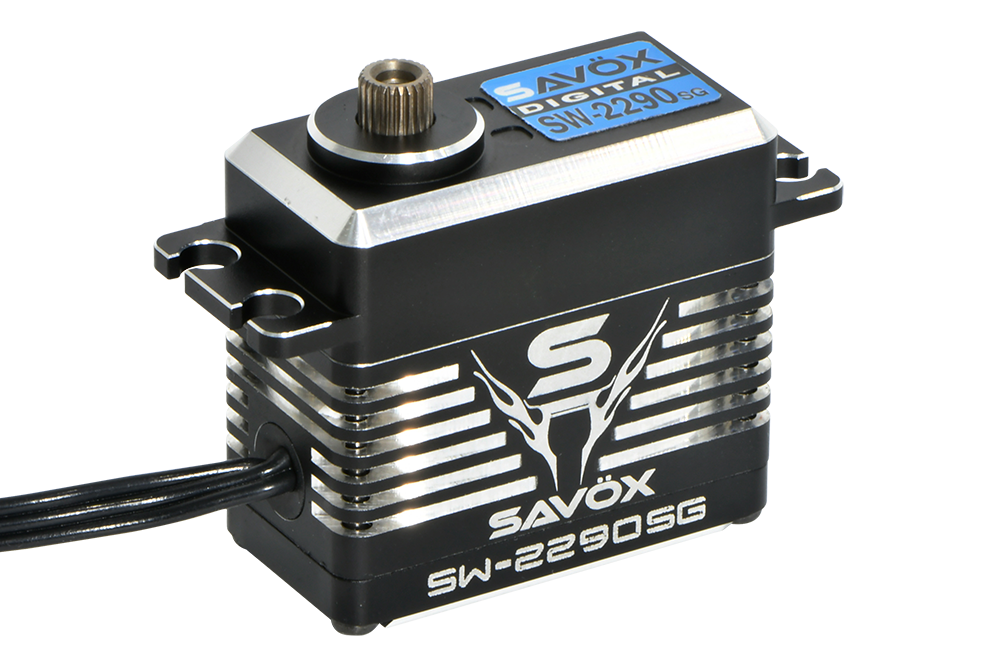

BLACK EDITION
HV

SW-2290SG BE

70.0 kg/cm |0.11 s/60° |8.4V

Patented Lightweight Brushless

Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLACK EDITION
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage6.0V-8.4V
Speed0.11 s/60°
Torque70.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWaterproof (IP67)
Dimensions41.0 x 21.0 x 39.9 mm
Weight88 g

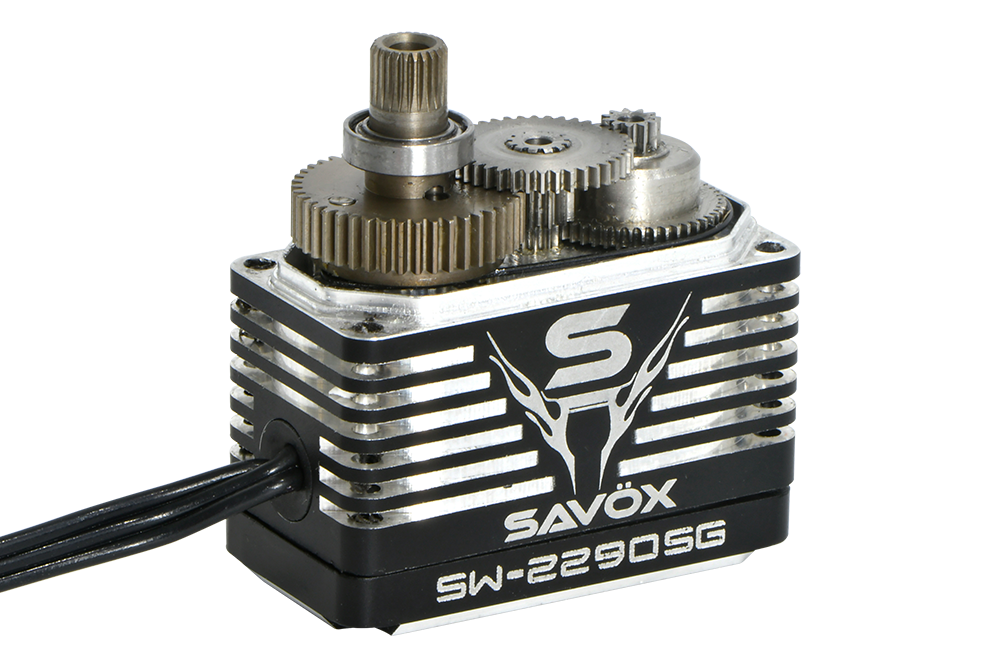

Gear TypeSpecialized Steel

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Size

Full specification

Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Speed @8.4V
Torque @8.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLACK EDITION
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage6.0V-8.4V
Speed @6.0V0.16 s/60°
Torque @6.0V45.0 kg/cm
Speed @7.4V0.13 s/60°
Torque @7.4V55.0 kg/cm
Speed @8.4V0.11 s/60°
Torque @8.4V70.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWaterproof (IP67)
Dimensions41.0 x 21.0 x 39.9 mm
Weight88 g
Gear TypeSpecialized Steel
CompabilityNormal
PCB Board12bit 4096, Softstart, Lock protection
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Stall Current @8.4V
Operating Current @8.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~130° (when 900→2100 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing3x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length450 ±5 mm
ConnectorJR Connector
Stall Current @6.0V7200 mA
Operating Current @6.0V200 mA
Stall Current @7.4V9200 mA
Operating Current @7.4V220 mA
Stall Current @8.4V10500 mA
Operating Current @8.4V250 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C

Other products

BLACK EDITION

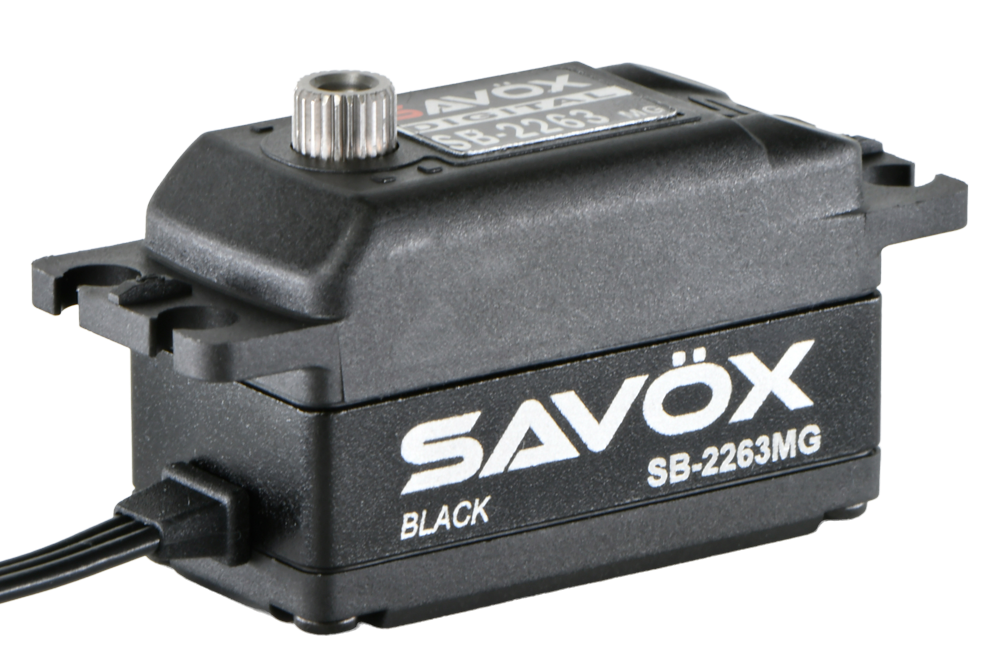

SB-2263MG BE
SB-2263MG BE
10.0 kg/cm |0.076 s/60° |6.0V

Original Brushless

Original Brushless

BLUE LINE

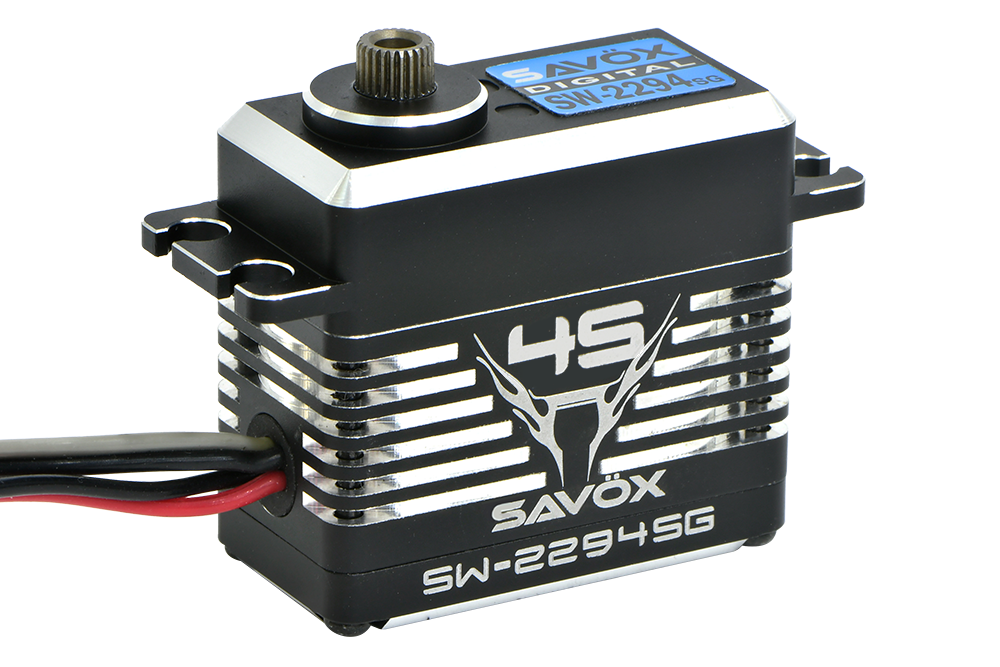

SW-2294SG
SW-2294SG
75.0 kg/cm |0.11 s/60° |16.8V

Patented Lightweight Brushless

Patented Lightweight Brushless

BLACK EDITION

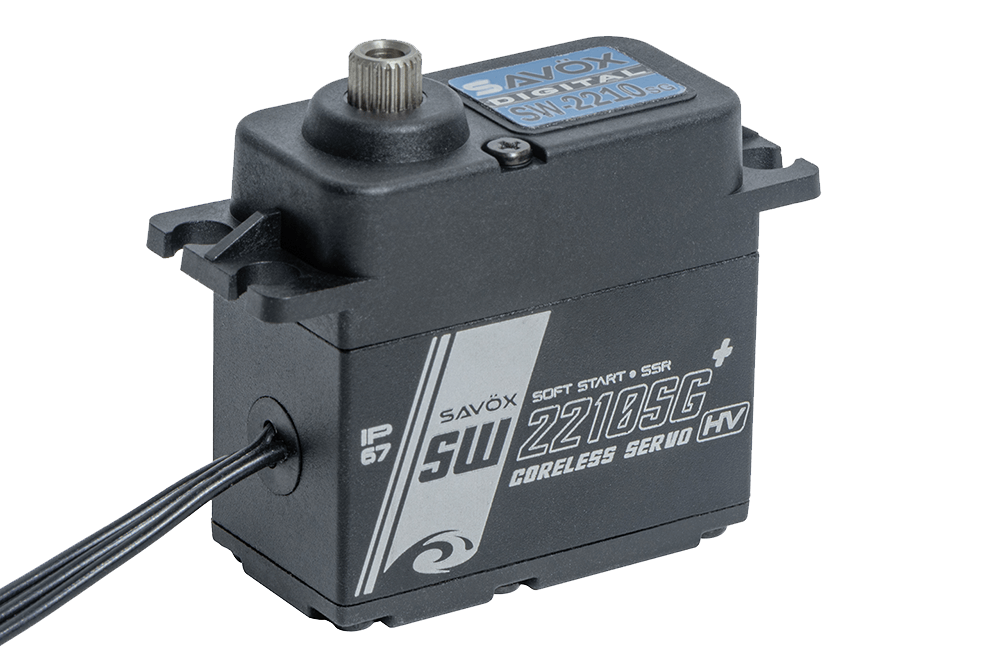

SW-2210SG+ BE
HV
SW-2210SG+ BE
45.0 kg/cm |0.1 s/60° |8.4V

Original Brushless

Original Brushless

BLUE LINE

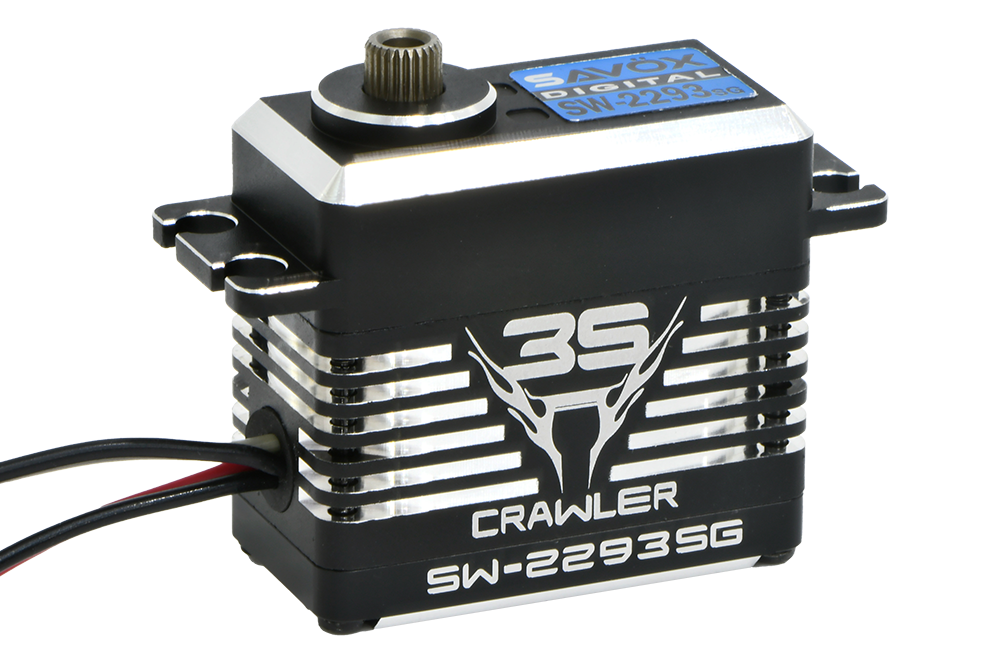

SW-2293SG
SW-2293SG
75.0 kg/cm |0.11 s/60° |12.6V

Patented Lightweight Brushless

Patented Lightweight Brushless

BLUE LINE

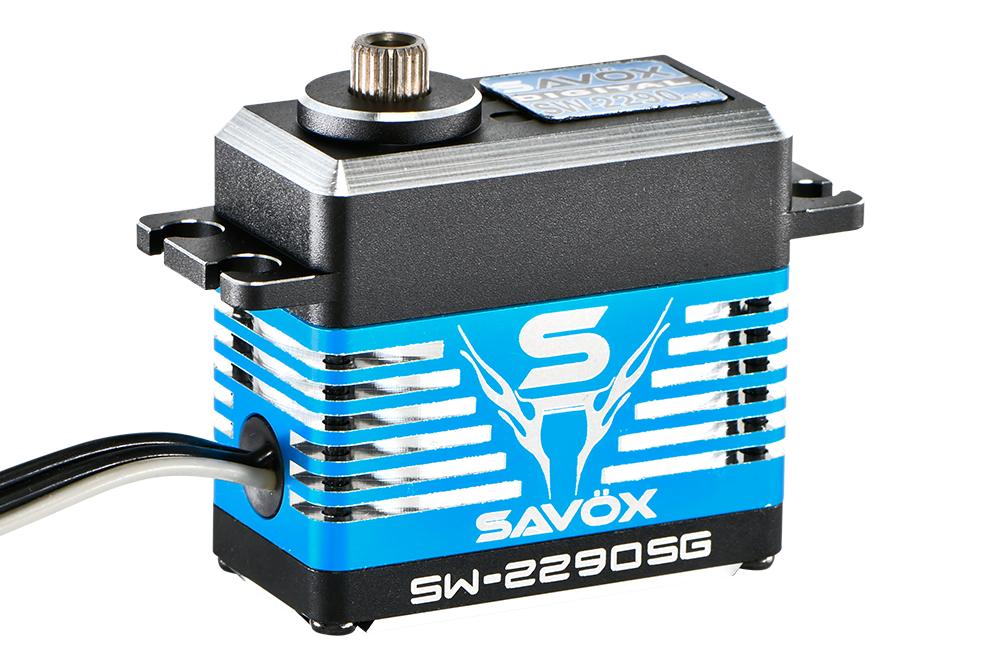

SW-2290SG
