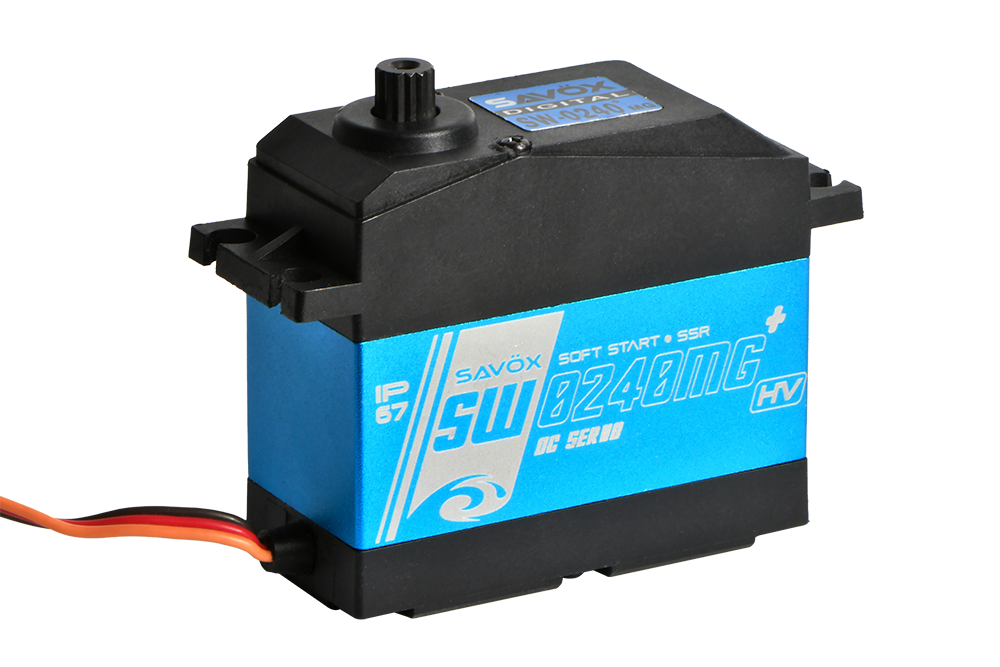

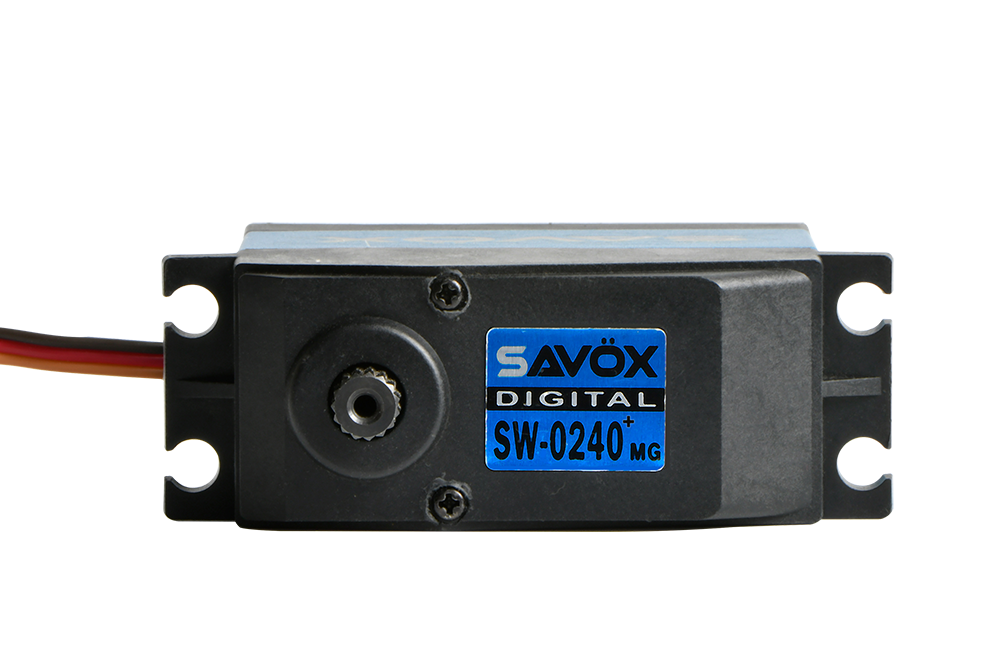

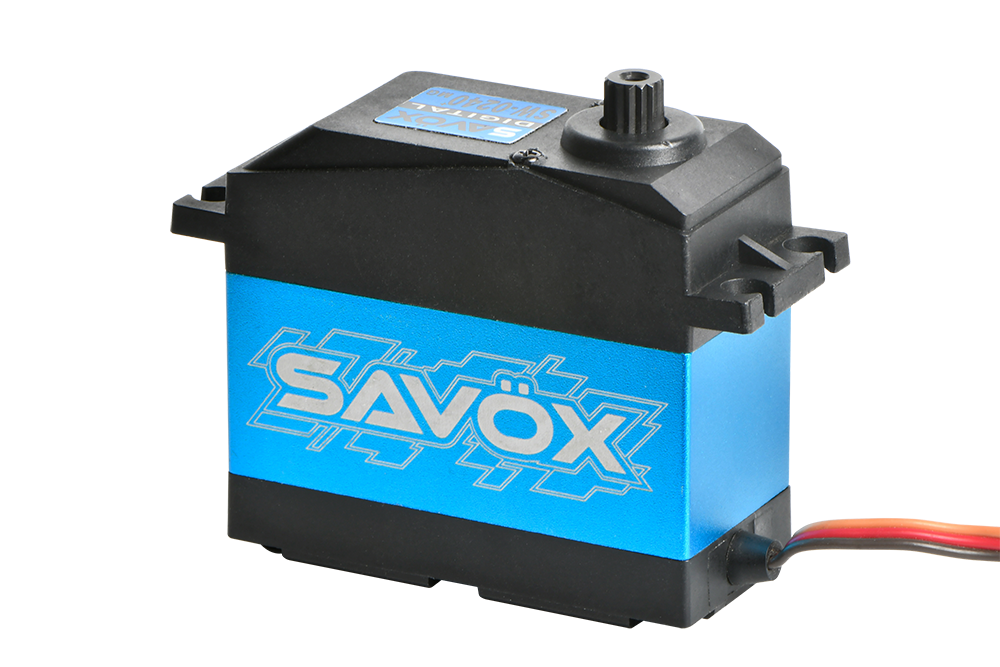

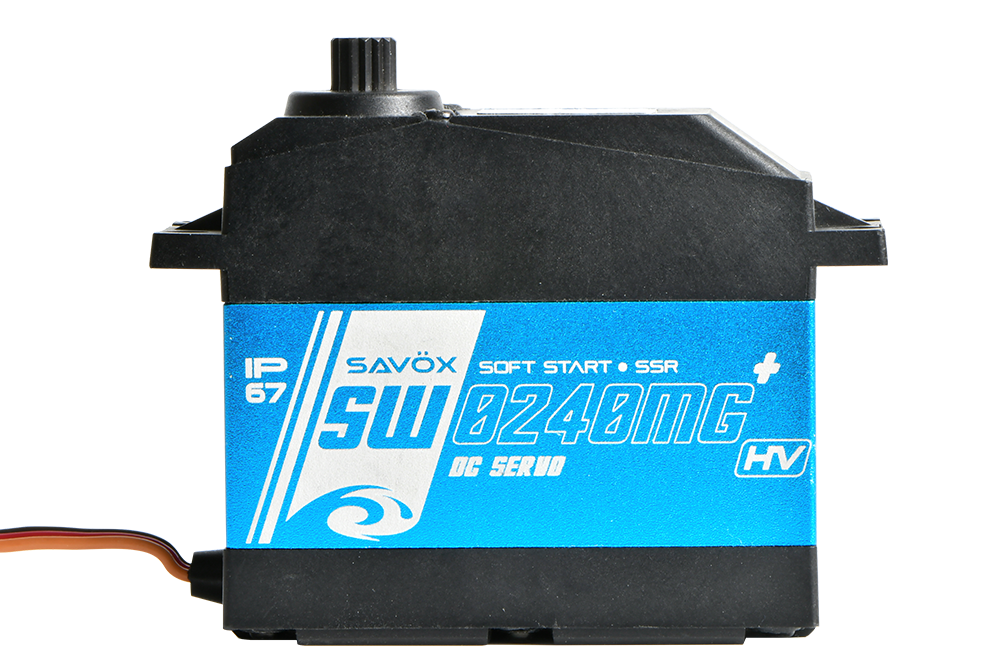

BLUE LINE
SW-0240MG+
35.0 kg/cm |0.15 s/60° |7.4V
DC Motor
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLUE LINE
ApplicationCAR / BOAT
Servo SizeLarge
Operating Voltage6.0V-7.4V
Speed0.15 s/60°
Torque35.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeHybrid (Aluminum/Composite)
ProtectionWaterproof (IP67)
Dimensions65.8 x 30.0 x 59.1 mm
Weight200 g

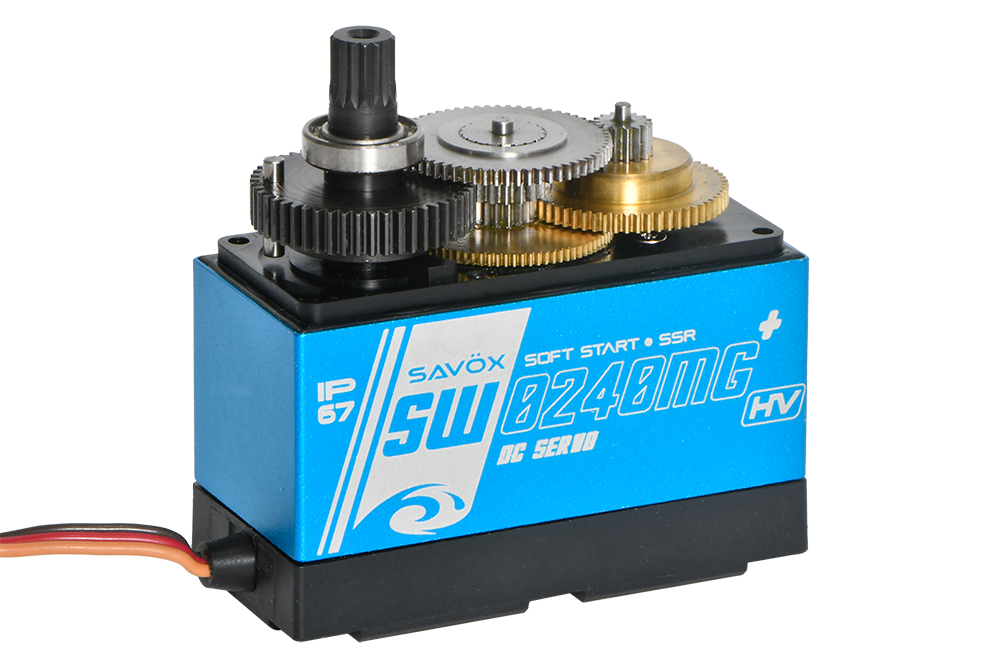

Gear TypeHeavy-Duty Metal
Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLUE LINE
ApplicationCAR / BOAT
Servo SizeLarge
Operating Voltage6.0V-7.4V
Speed @6.0V0.18 s/60°
Torque @6.0V28.0 kg/cm
Speed @7.4V0.15 s/60°
Torque @7.4V35.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeHybrid (Aluminum/Composite)
ProtectionWaterproof (IP67)
Dimensions65.8 x 30.0 x 59.1 mm
Weight200 g
Gear TypeHeavy-Duty Metal
CompabilitySanwa SSR
PCB Board10bit 1024, Softstart, Lock protection
Horn Gear Spline15T(ψ7.8)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~130° (when 800→2200 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length200 ±5 mm
ConnectorJR Connector
Stall Current @6.0V7500 mA
Operating Current @6.0V180 mA
Stall Current @7.4V9000 mA
Operating Current @7.4V200 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
