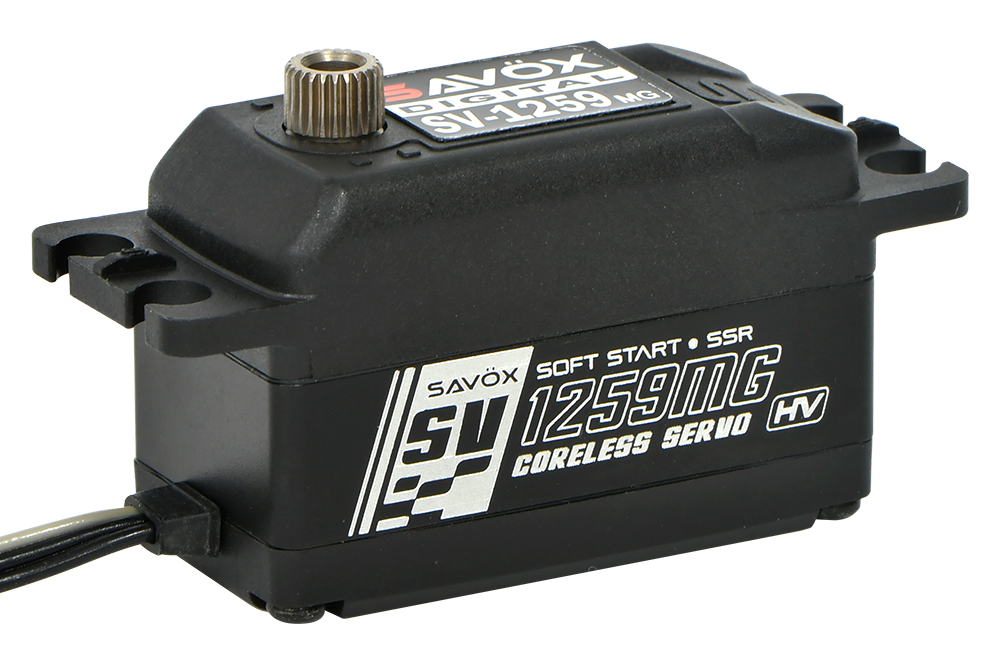

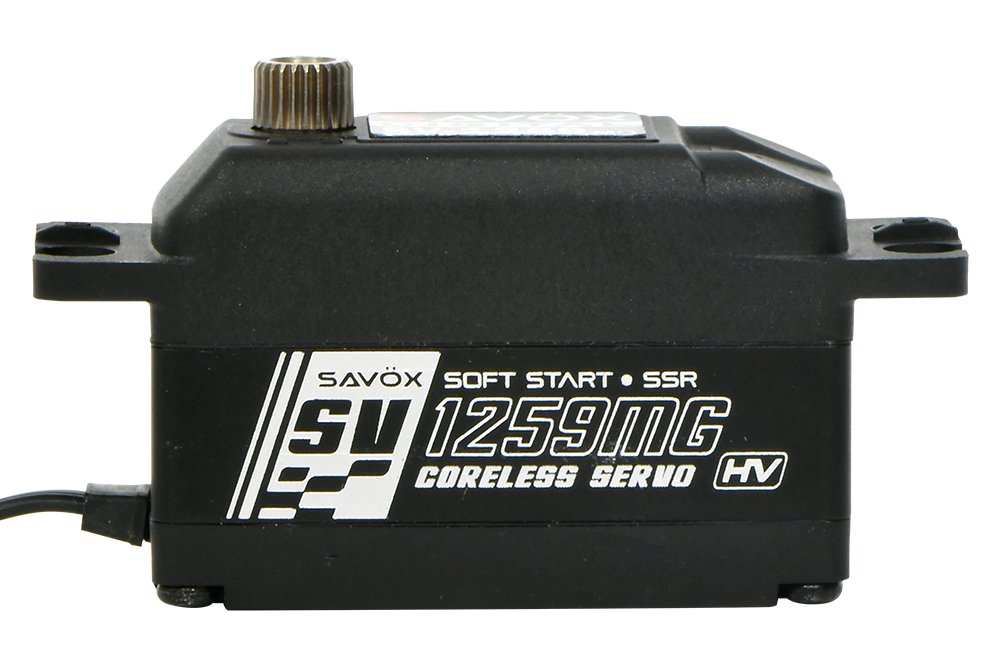

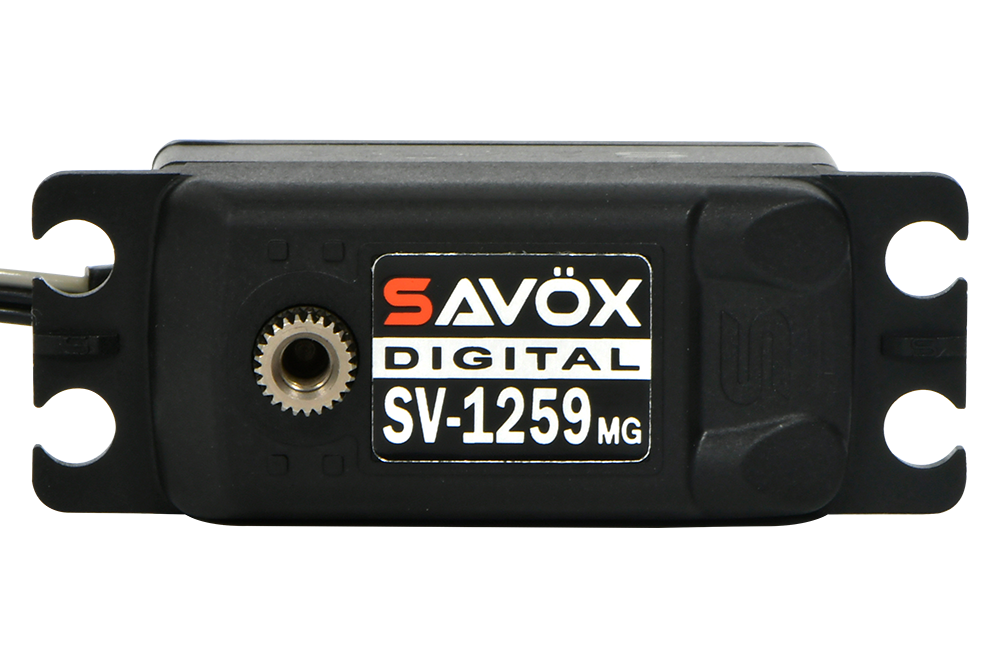

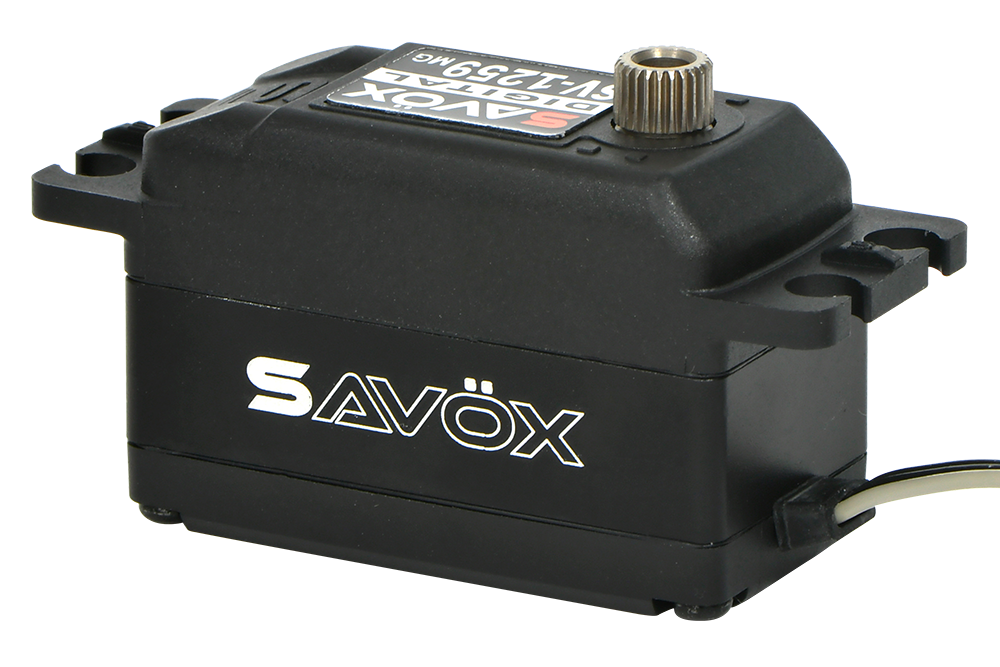

SV-1259MG

22.0 kg/cm |22 s/60° |8.4V

Coreless

Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLACK EDITION
ApplicationCAR
Servo SizeLow Profile
Operating Voltage6.0V-8.4V
Speed22 s/60°
Torque22.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 27.35 mm
Weight49 g
Gear TypeHybrid (Metal/Composite)
SV-1259MG
SV-1259MG

Ultra-Quiet Operation

Enjoy ultra-smooth precision and lightning-fast response — and the best part, you hear almost nothing.

32-bit High-Efficiency Control

Next-generation control board delivers smarter, cleaner, more consistent steering feel.

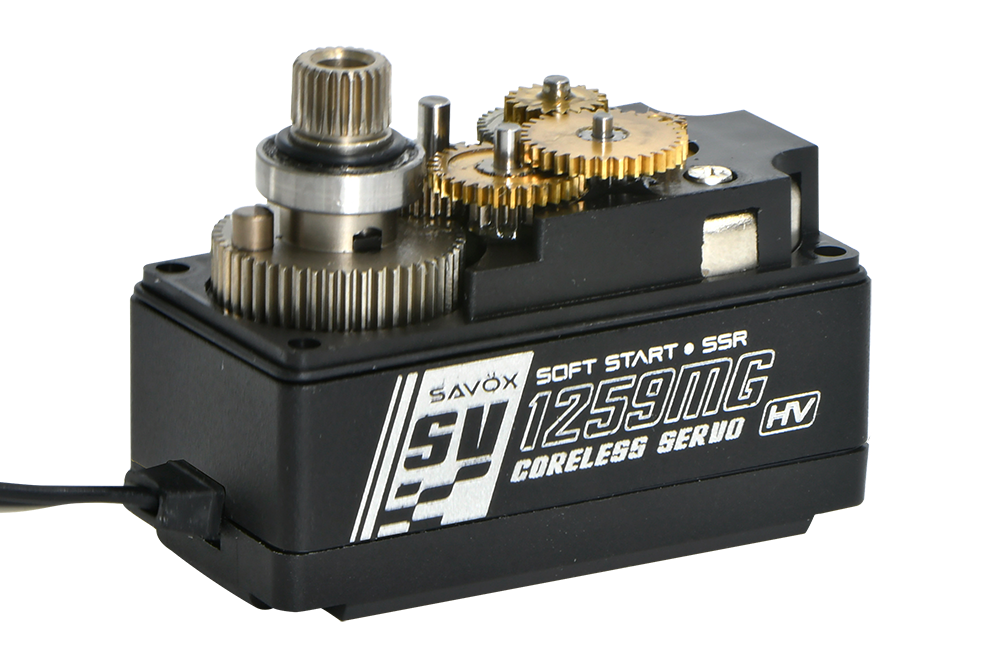

Hybrid Construction

Hybrid aluminum/composite case for strength and thermal behavior — hybrid metal/composite gears for durability with low noise.

Racing Focused Applications

Built for 1/10 surface competition — EP/GP touring, 2WD and 4WD buggies — and even suitable for 1/8 EP steering or 1/8 GP on-road throttle.

Quick Look: SV-1259MG Silent Precision

SV-1259MG is purpose-built for the 1/10 racing scene — combining high-speed precision with Ultra-Quiet Software so your car feels locked-in and your mind stays clear.

Its hybrid construction delivers the sweet spot of strength, weight, and noise control, while the 32-bit control board and SMART protocol compatibility keep response crisp on SANWA SSR/SUR and FUTABA SR/UR systems.

Pure Racing
Silent Speed
BLACK EDITION

A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.

Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.

Silent power, razor-sharp control

SV-1259MG keeps your focus where it belongs.

Value-Packed

B-12KG

Balanced Power

SV-1259MG

Peak Performer

SB-2291SG

Size

Full specification

Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Speed @8.4V
Torque @8.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLACK EDITION
ApplicationCAR
Servo SizeLow Profile
Operating Voltage6.0V-8.4V
Speed @6.0V0.1 s/60°
Torque @6.0V15.0 kg/cm
Speed @7.4V0.085 s/60°
Torque @7.4V19.0 kg/cm
Speed @8.4V22 s/60°
Torque @8.4V22.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 27.35 mm
Weight49 g
Gear TypeHybrid (Metal/Composite)
CompabilitySanwa SUR, SSR; Futaba UR, SR
PCB Board12-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Stall Current @8.4V
Operating Current @8.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~140° (when 800→2200 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @6.0V3500 mA
Operating Current @6.0V180 mA
Stall Current @7.4V4200 mA
Operating Current @7.4V200 mA
Stall Current @8.4V4800 mA
Operating Current @8.4V220 mA
Idle Current6 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
|
