MONSTER LINE
HV
SV-1232MG
6.5 kg/cm |0.04 s/60° |8.4V
Coreless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineMONSTER LINE
ApplicationCAR / HELI;AIRPLANE
Servo SizeMicro
Operating Voltage6.0V-8.4V
Speed0.04 s/60°
Torque6.5 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeAluminum
ProtectionWater Resistant
Dimensions23 x 12 x 27.25 mm
Weight23 g
Gear TypeHeavy-Duty Metal
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability.
With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.

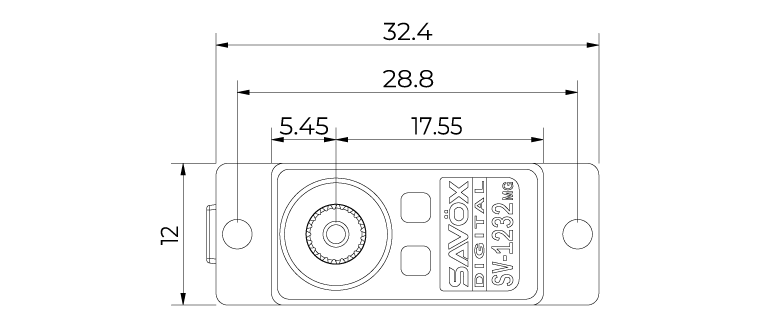

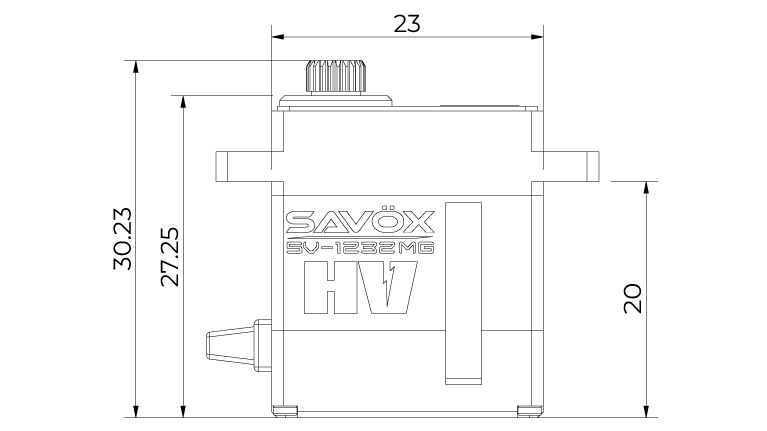

Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Speed @8.4V
Torque @8.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineMONSTER LINE
ApplicationCAR / HELI;AIRPLANE
Servo SizeMicro
Operating Voltage6.0V-8.4V
Speed @6.0V0.06 s/60°
Torque @6.0V4.0 kg/cm
Speed @7.4V0.05 s/60°
Torque @7.4V5.0 kg/cm
Speed @8.4V0.04 s/60°
Torque @8.4V6.5 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeAluminum
ProtectionWater Resistant
Dimensions23 x 12 x 27.25 mm
Weight23 g
Gear TypeHeavy-Duty Metal
CompabilityNormal
PCB Board8-bit
Horn Gear Spline21T(Φ4.8)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Stall Current @8.4V
Operating Current @8.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~165° (when 800→2200 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @6.0V1800 mA
Operating Current @6.0V150 mA
Stall Current @7.4V2200 mA
Operating Current @7.4V180 mA
Stall Current @8.4V2400 mA
Operating Current @8.4V220 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
