ORIGINAL LINE

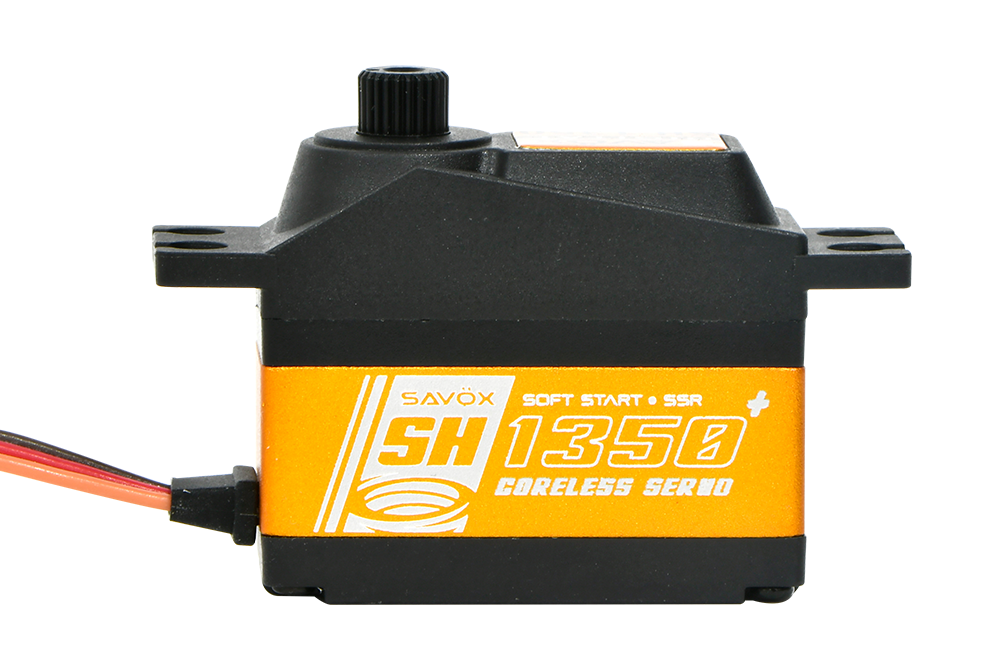

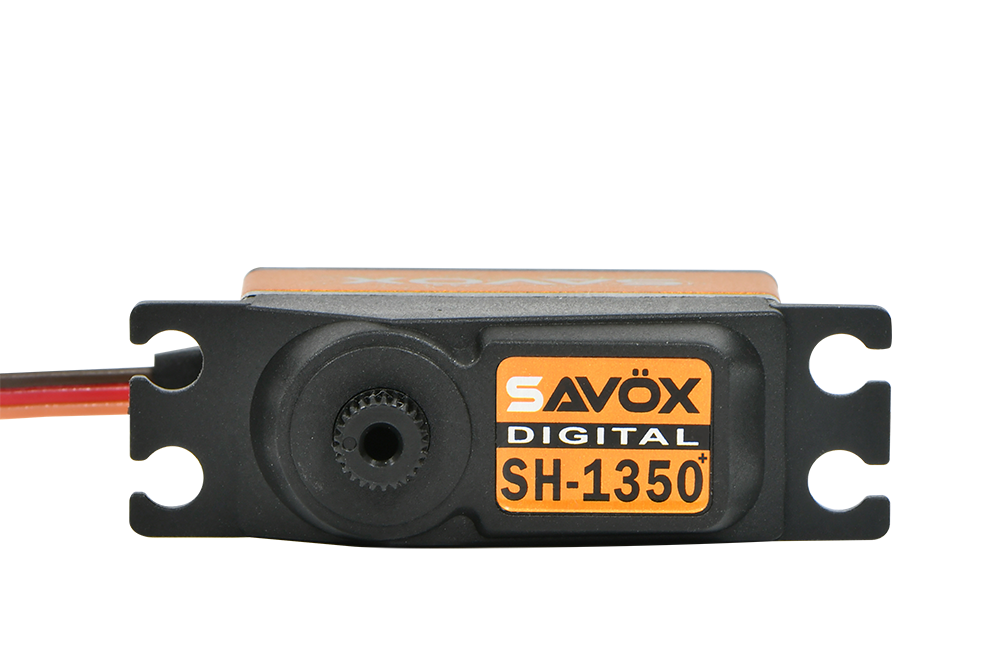

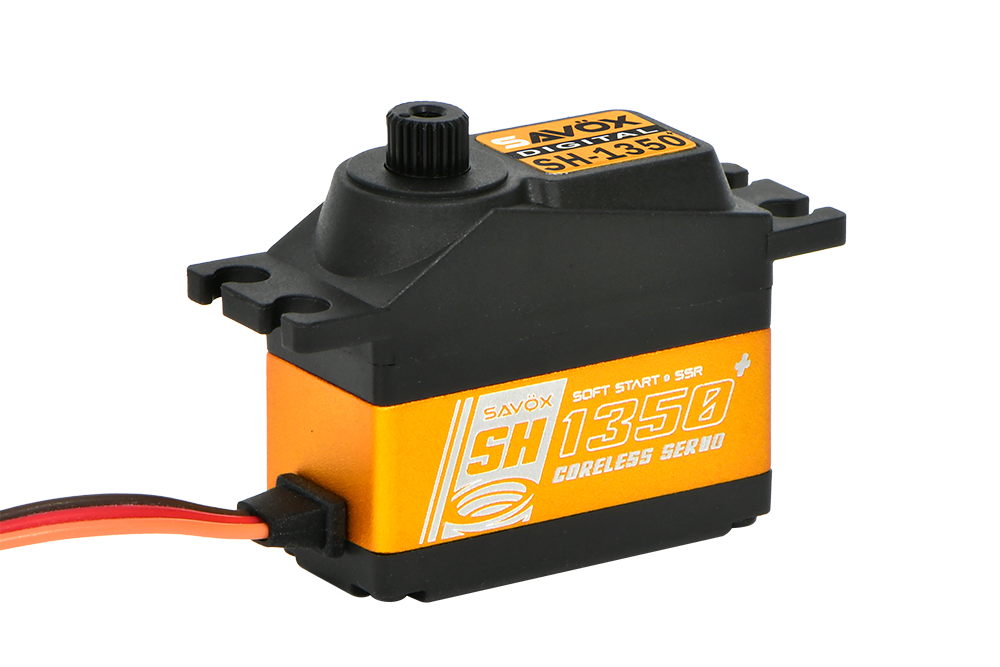

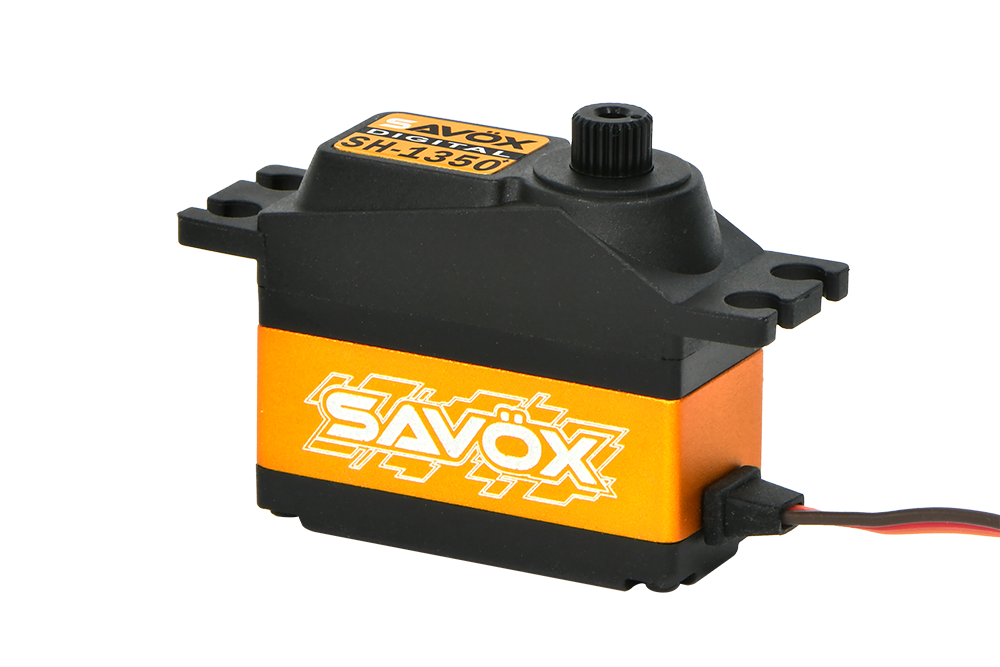

SH-1350+
4.6 kg/cm |0.11 s/60° |6.0V
Coreless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineORIGINAL LINE
ApplicationCAR / HELI;AIRPLANE
Servo SizeMini
Operating Voltage4.8V-6.0V
Speed0.11 s/60°
Torque4.6 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions35.0 x 15.0 x 29.2 mm
Weight26 g

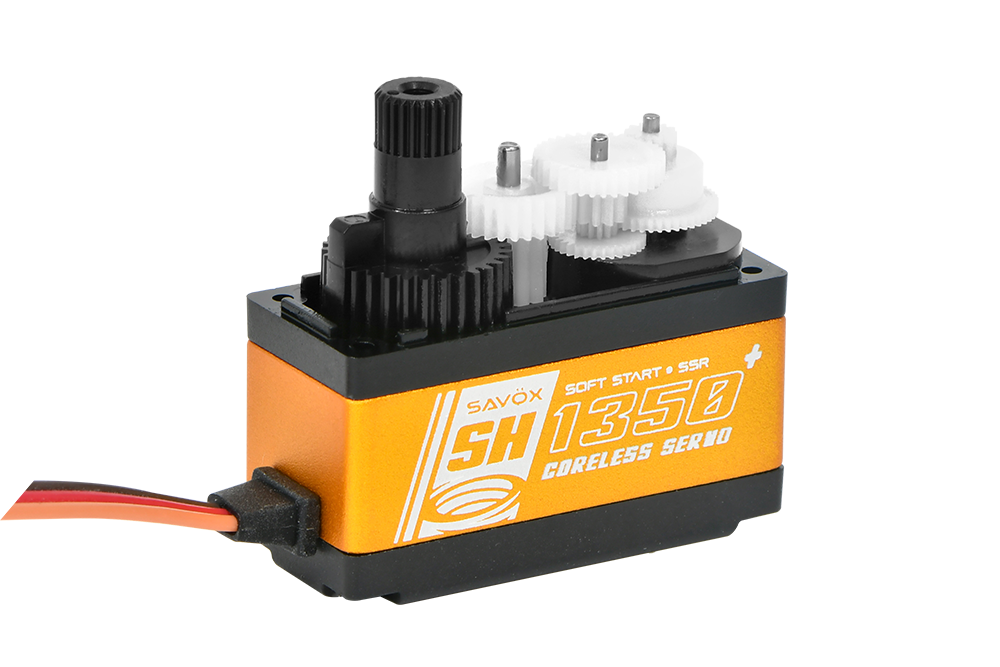

Gear TypeHigh-Strength Composite
Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineORIGINAL LINE
ApplicationCAR / HELI;AIRPLANE
Servo SizeMini
Operating Voltage4.8V-6.0V
Speed @4.8V0.13 s/60°
Torque @4.8V3.7 kg/cm
Speed @6.0V0.11 s/60°
Torque @6.0V4.6 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions35.0 x 15.0 x 29.2 mm
Weight26 g
Gear TypeHigh-Strength Composite
CompabilitySanwa SSR
PCB Board12bit 4096, Softstart, Lock protection
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~154° (when 800→2200 μsec)
Operating Travel110° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @4.8V1200 mA
Operating Current @4.8V80 mA
Stall Current @6.0V1500 mA
Operating Current @6.0V100 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
