GLIDER EDITION
SG-0211MG
8.0 kg/cm |0.13 s/60° |6.0V
DC Motor
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineGLIDER EDITION
ApplicationGLIDER
Servo SizeMicro
Operating Voltage4.8V-6.0V
Speed0.13 s/60°
Torque8.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeAluminum
ProtectionDust Resistant
Dimensions30.0 x 10.0 x 36.0 mm
Weight29 g
Gear TypeHeavy-Duty Metal
Ultra-lightweight, low current draw, and high precision - the Glider Edition is purpose-built for gliders, sailplanes, and micro aircraft where every gram counts.
Designed for slim wing, tail, and fuselage installs, these servos deliver smooth, accurate movement with minimal energy use. If your goal is efficient, precise flight, the Glider Edition is your lift ticket.

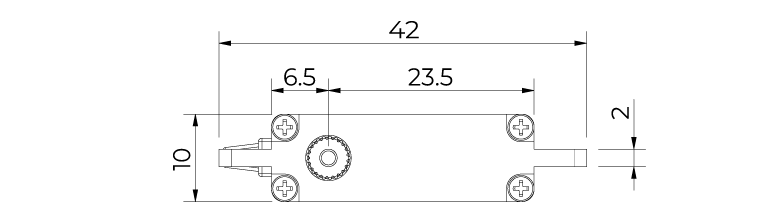

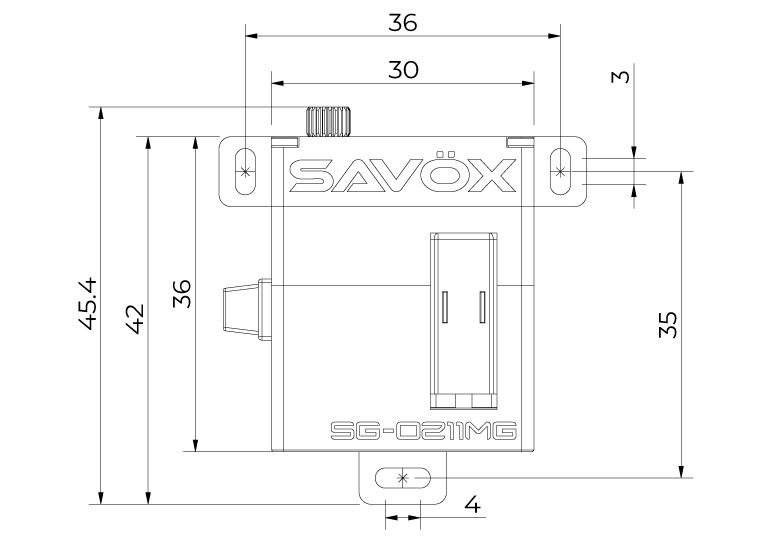

Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineGLIDER EDITION
ApplicationGLIDER
Servo SizeMicro
Operating Voltage4.8V-6.0V
Speed @4.8V0.16 s/60°
Torque @4.8V6.0 kg/cm
Speed @6.0V0.13 s/60°
Torque @6.0V8.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeAluminum
ProtectionDust Resistant
Dimensions30.0 x 10.0 x 36.0 mm
Weight29 g
Gear TypeHeavy-Duty Metal
CompabilityNormal
PCB Board10-bit
Horn Gear Spline21T(Φ4.8)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionClockwise (when 1000→2000 μsec)
Max Travel~165° (when 800→2200 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @4.8V1500 mA
Operating Current @4.8V120 mA
Stall Current @6.0V1800 mA
Operating Current @6.0V180 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
