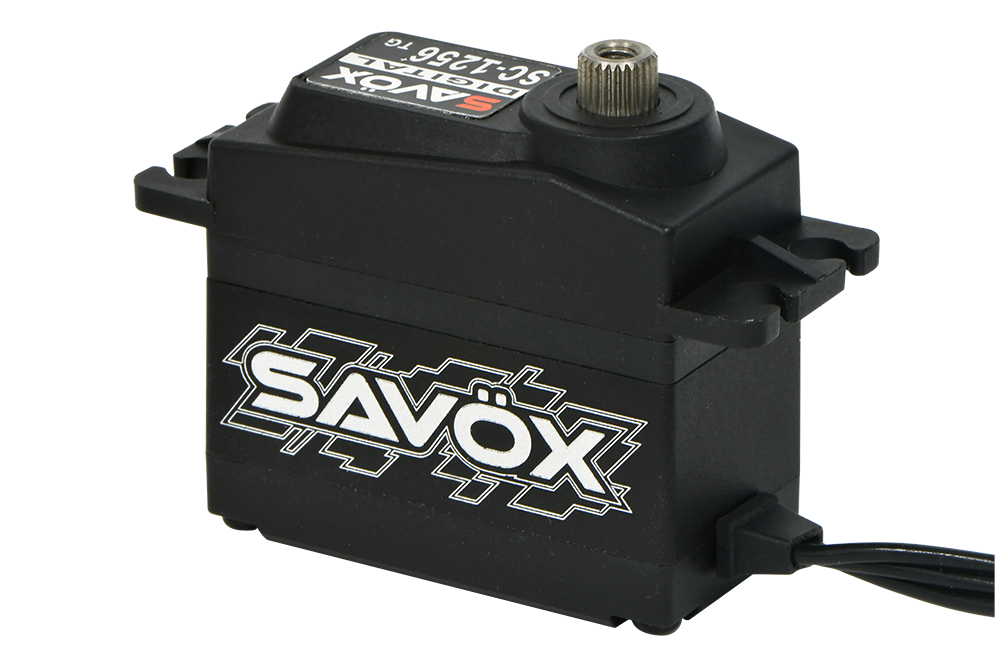

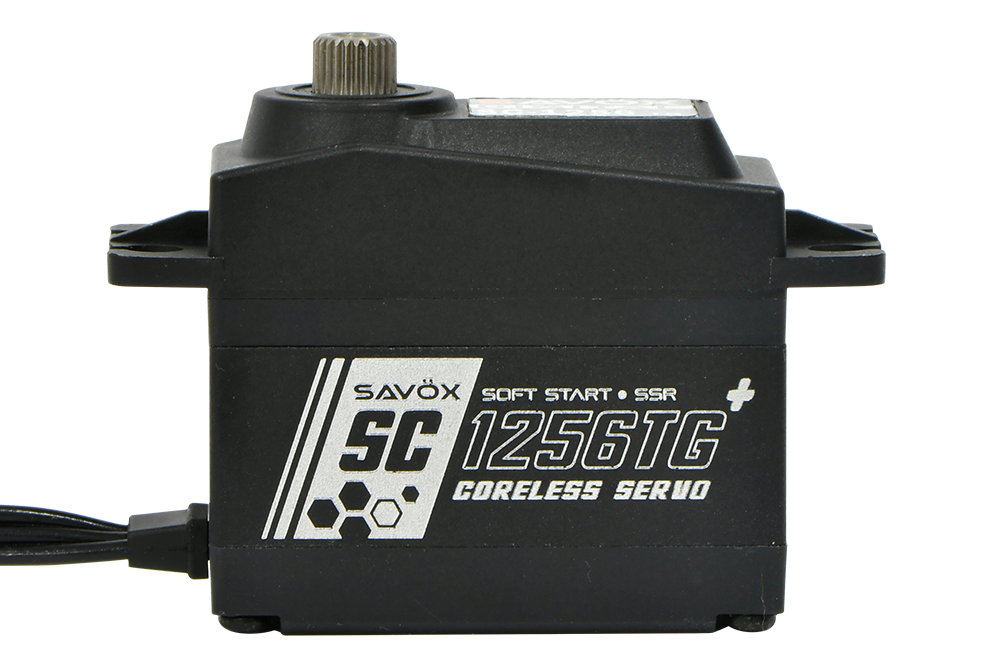

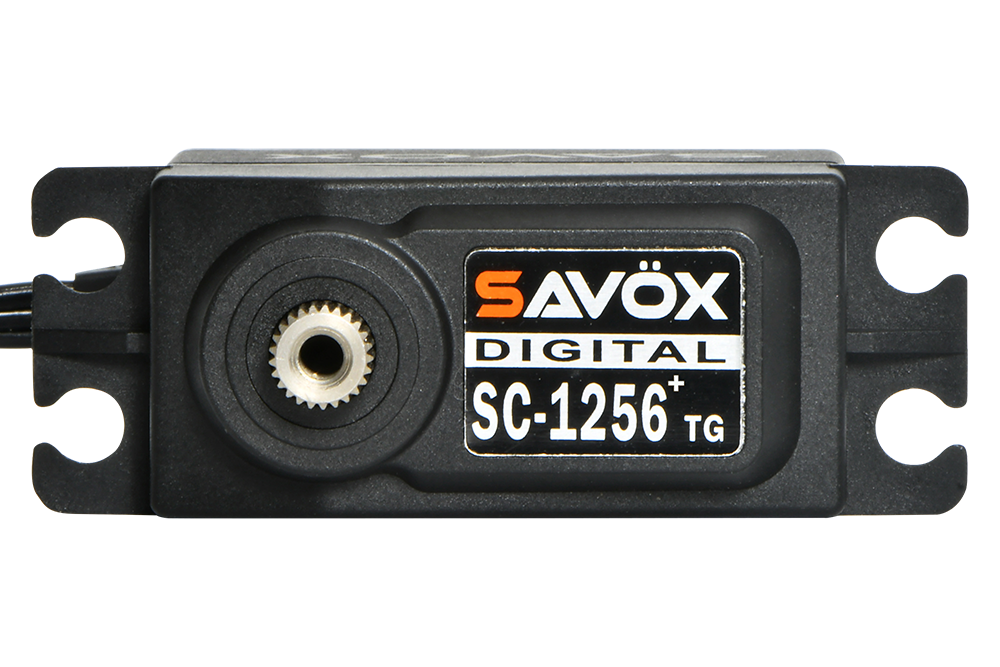

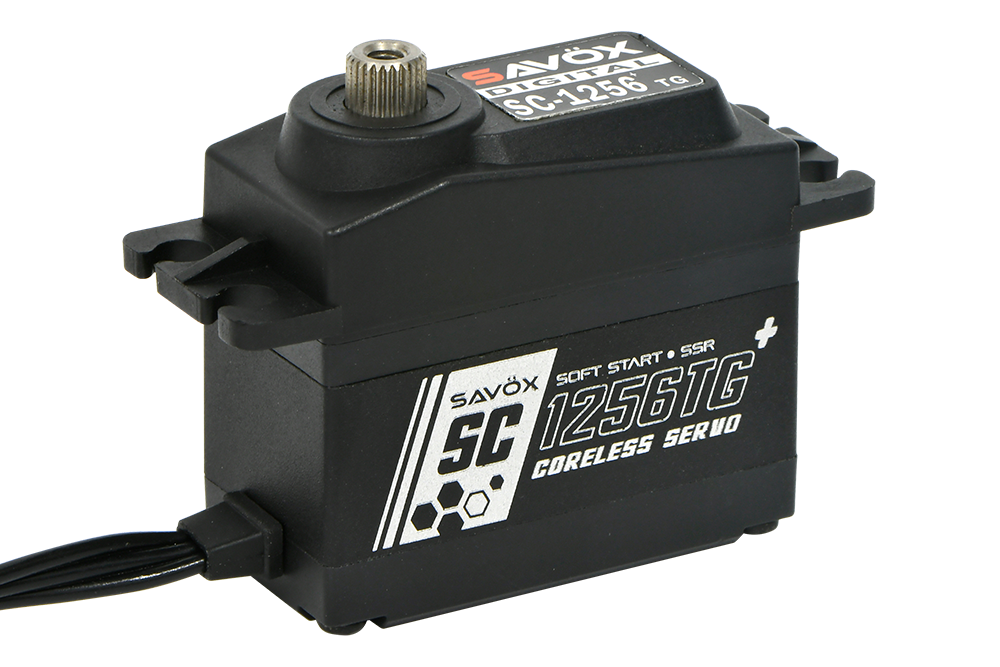

BLACK EDITION
SC-1256TG+ BE
20.0 kg/cm |0.15 s/60° |6.0V
Coreless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLACK EDITION
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed0.15 s/60°
Torque20.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions40.3 x 20.2 x 37.2 mm
Weight64 g
Gear TypeTitanium
A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.
Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLACK EDITION
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed @4.8V0.18 s/60°
Torque @4.8V16.0 kg/cm
Speed @6.0V0.15 s/60°
Torque @6.0V20.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions40.3 x 20.2 x 37.2 mm
Weight64 g

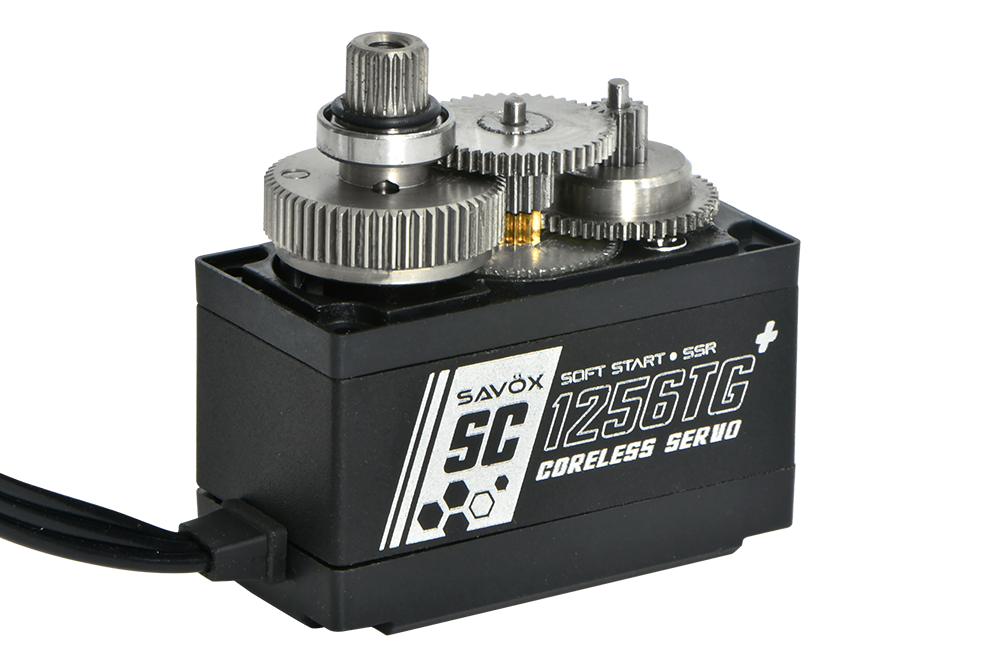

Gear TypeTitanium
CompabilitySanwa SSR
PCB Board12-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1500→2000 μsec)
Max Travel~130° (when 900→2100 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length200 ±5 mm
ConnectorJR Connector
Stall Current @4.8V4000 mA
Operating Current @4.8V100 mA
Stall Current @6.0V5000 mA
Operating Current @6.0V120 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
