HOBBY LINE
SC-0252MG+
10.5 kg/cm |0.19 s/60° |6.0V
DC Motor
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineHOBBY LINE
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed0.19 s/60°
Torque10.5 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions40.7 x 20.0 x 39.4 mm
Weight49 g

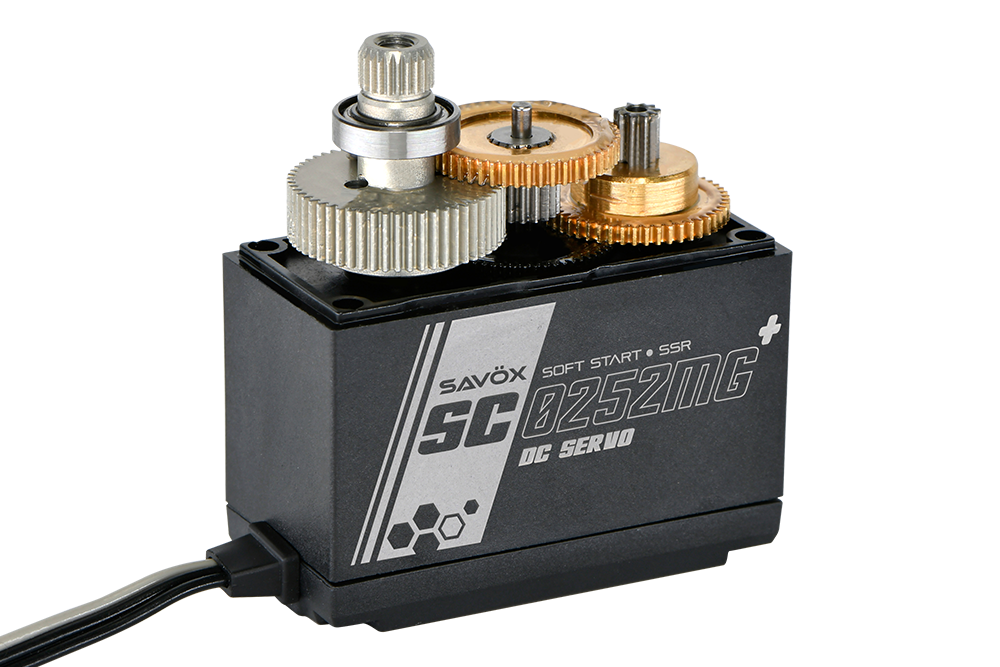

Gear TypeHeavy-Duty Metal
Simple, reliable, and budget-friendly - the Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling your first kit, these servos offer solid function at an accessible price.
Equipped with features like metal gears and smooth control response, Hobby Line servos are ideal for casual drivers, beginners, and weekend bashers. It's all about getting you driving with confidence – no stress, no fuss.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineHOBBY LINE
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed @4.8V0.23 s/60°
Torque @4.8V7.2 kg/cm
Speed @6.0V0.19 s/60°
Torque @6.0V10.5 kg/cm
Amplifier TypeDigital Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions40.7 x 20.0 x 39.4 mm
Weight49 g
Gear TypeHeavy-Duty Metal
CompabilitySanwa SSR
PCB Board10-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1500→2000 μsec)
Max Travel~164° (when 800→2200 μsec)
Operating Travel120° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length300 ±5 mm
ConnectorJR Connector
Stall Current @4.8V1400 mA
Operating Current @4.8V280 mA
Stall Current @6.0V1700 mA
Operating Current @6.0V320 mA
Idle Current6 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
