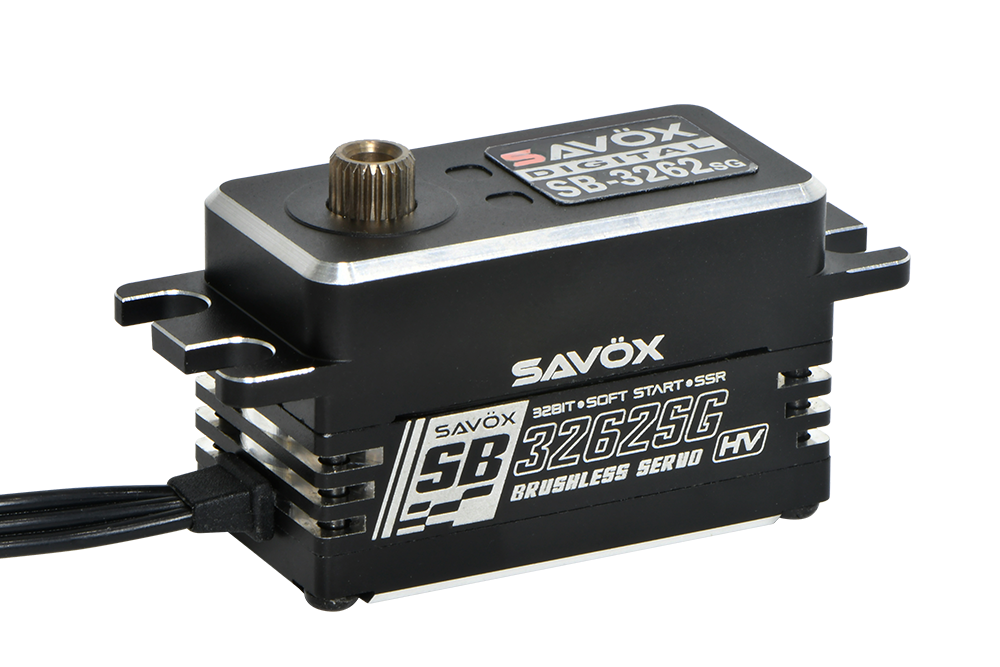

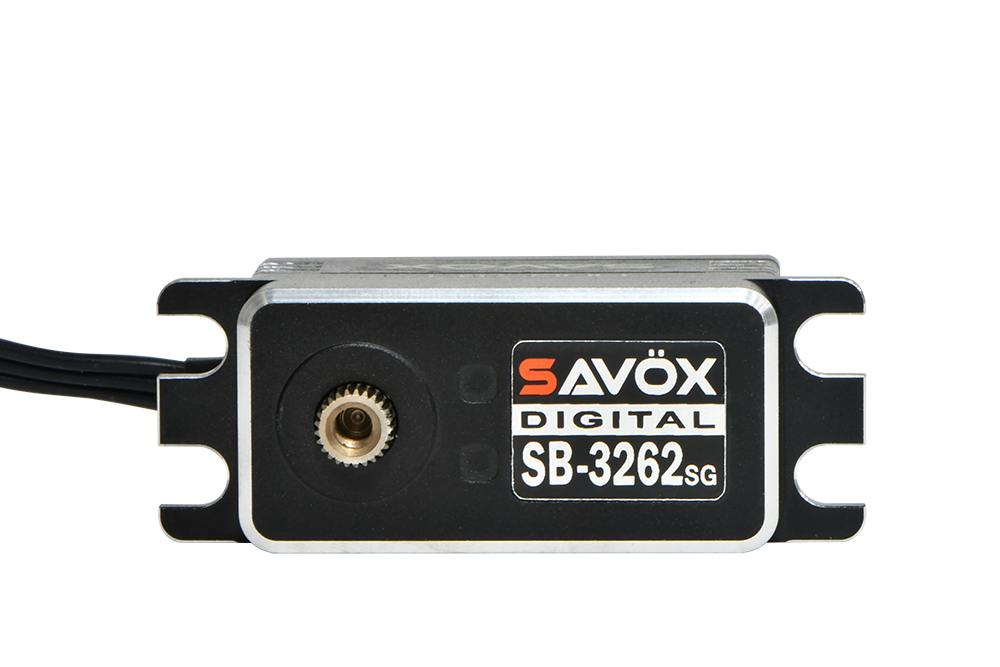

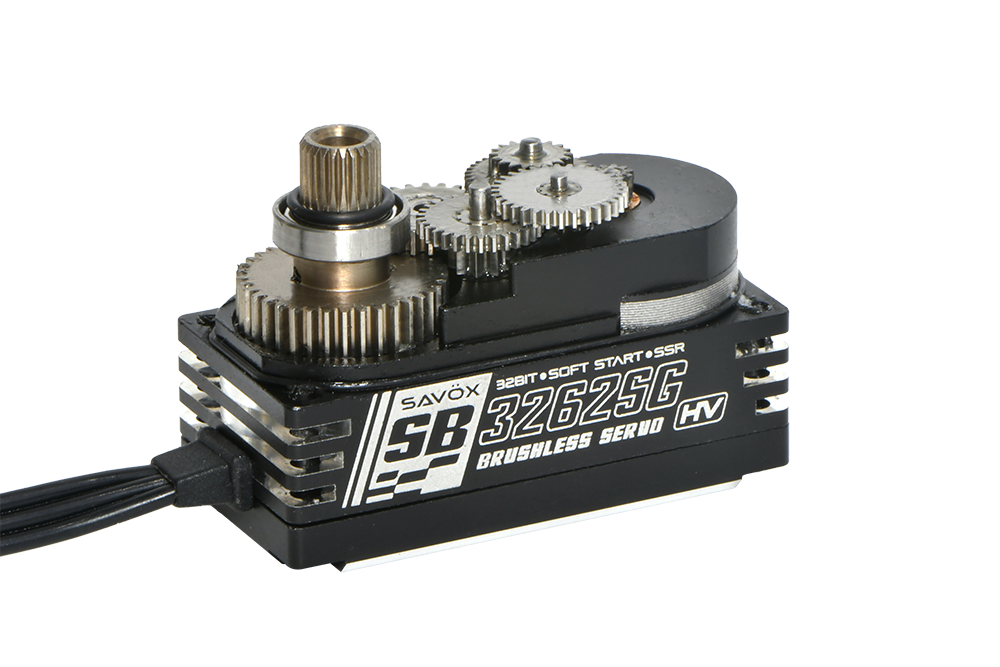

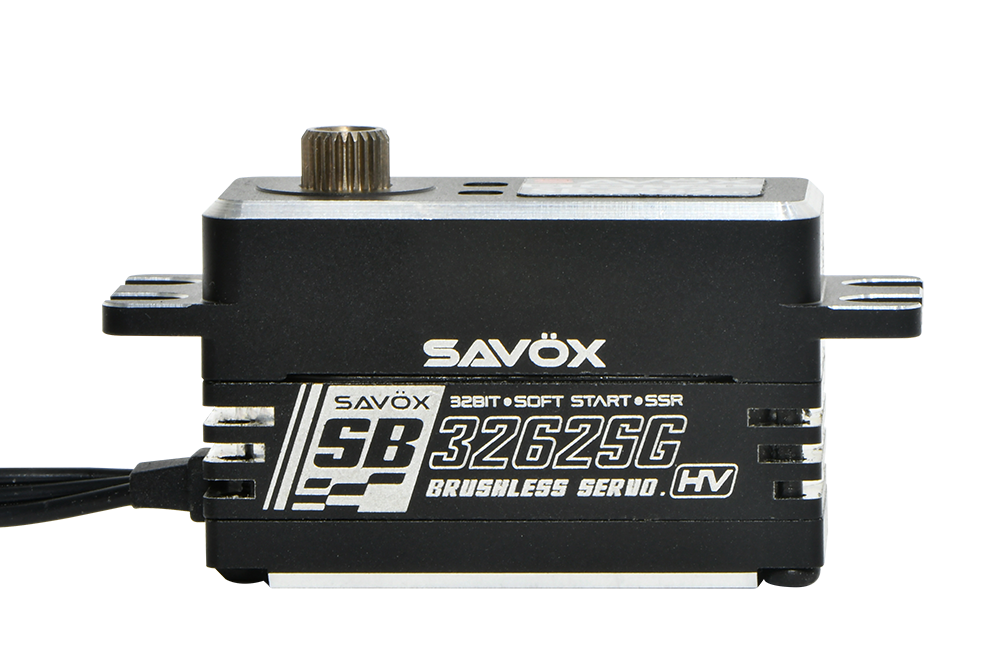

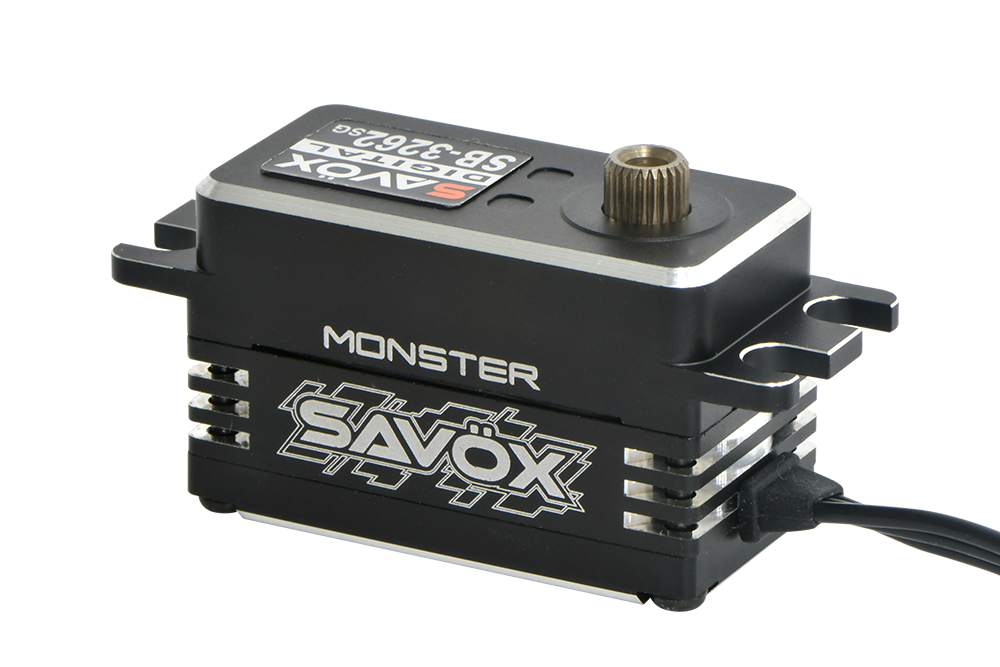

MONSTER LINE
HV
SB-3262SG
35.0 kg/cm |0.065 s/60° |8.4V
Patented Lightweight Brushless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineMONSTER LINE
ApplicationCAR / AIRPLANE
Servo SizeLow Profile
Operating Voltage6.0V-8.4V
Speed0.065 s/60°
Torque35.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 25.4 mm
Weight53 g
Gear TypeSpecialized Steel
Quick Look: SB-3262SG Lightweight Brushless
Andy introduces the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight.
Ideal for weight-conscious racers who need fast response and high output.
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability.
With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Speed @8.4V
Torque @8.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineMONSTER LINE
ApplicationCAR / AIRPLANE
Servo SizeLow Profile
Operating Voltage6.0V-8.4V
Speed @6.0V0.1 s/60°
Torque @6.0V22.0 kg/cm
Speed @7.4V0.08 s/60°
Torque @7.4V28.0 kg/cm
Speed @8.4V0.065 s/60°
Torque @8.4V35.0 kg/cm
Amplifier TypeDigital Controller
Motor TypePatented Lightweight Brushless
Case TypeAluminum
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 25.4 mm
Weight53 g
Gear TypeSpecialized Steel
CompabilitySanwa SUR, SSR; Futaba UR, SR
PCB Board32-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Stall Current @8.4V
Operating Current @8.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~130° (when 900→2100 μsec)
Operating Travel90° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length300 ±5 mm
ConnectorJR Connector
Stall Current @6.0V4500 mA
Operating Current @6.0V200 mA
Stall Current @7.4V5600 mA
Operating Current @7.4V220 mA
Stall Current @8.4V6300 mA
Operating Current @8.4V250 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
