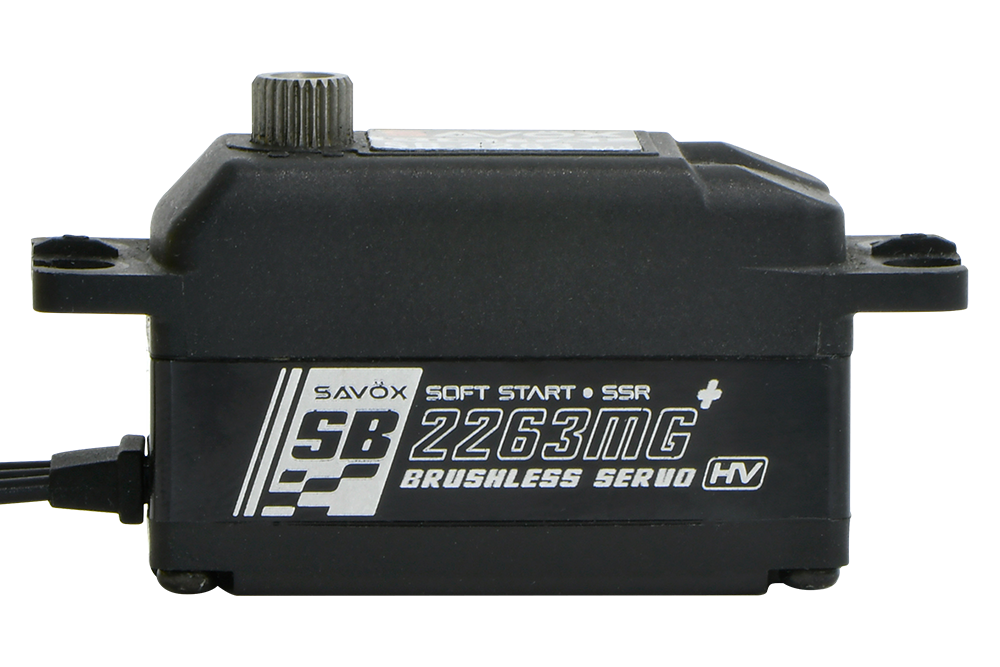

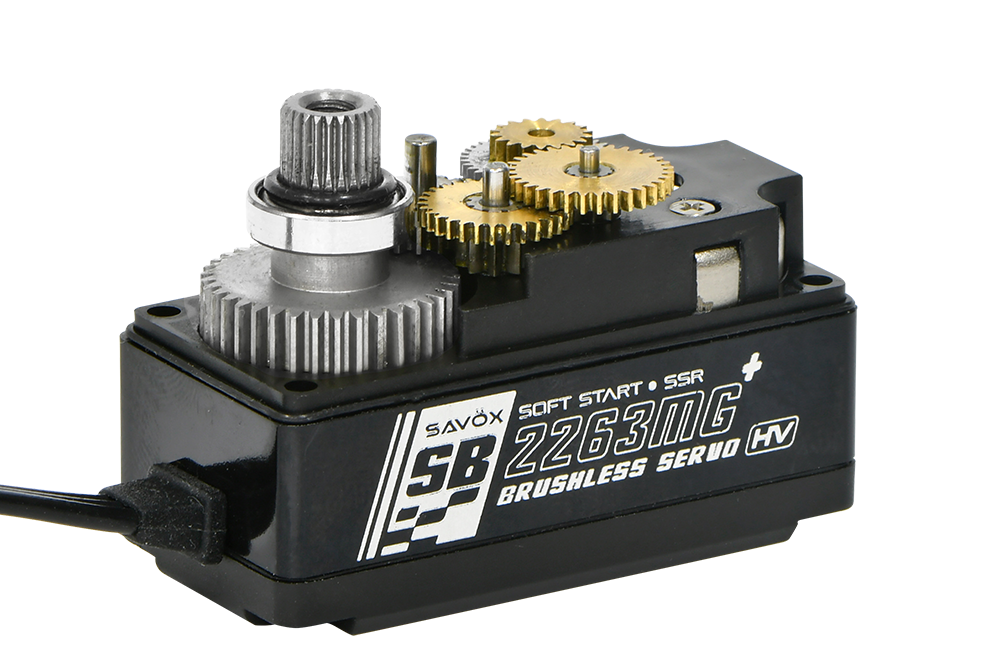

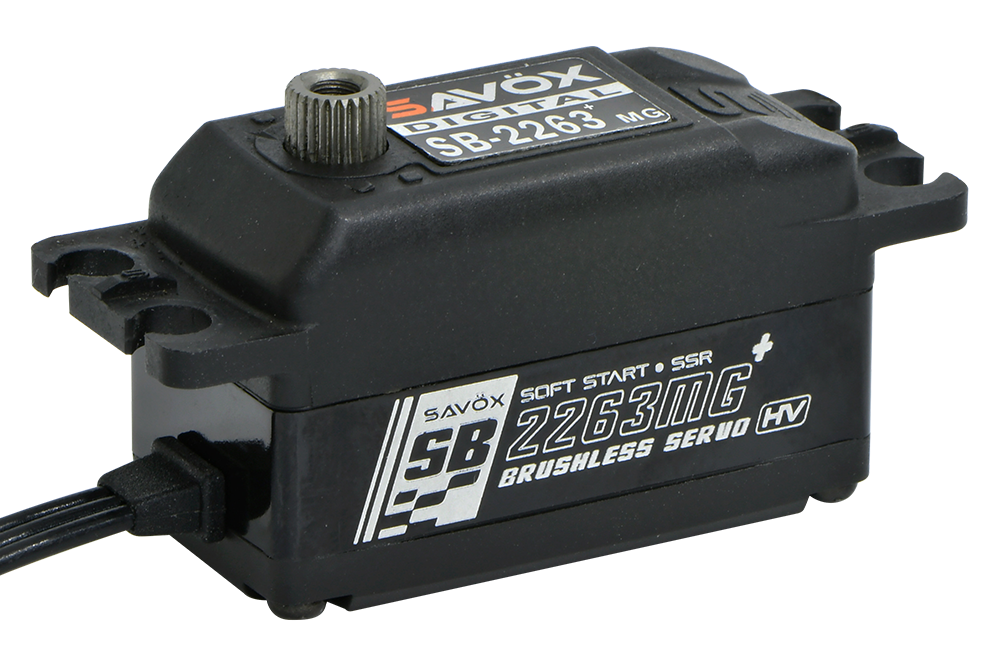

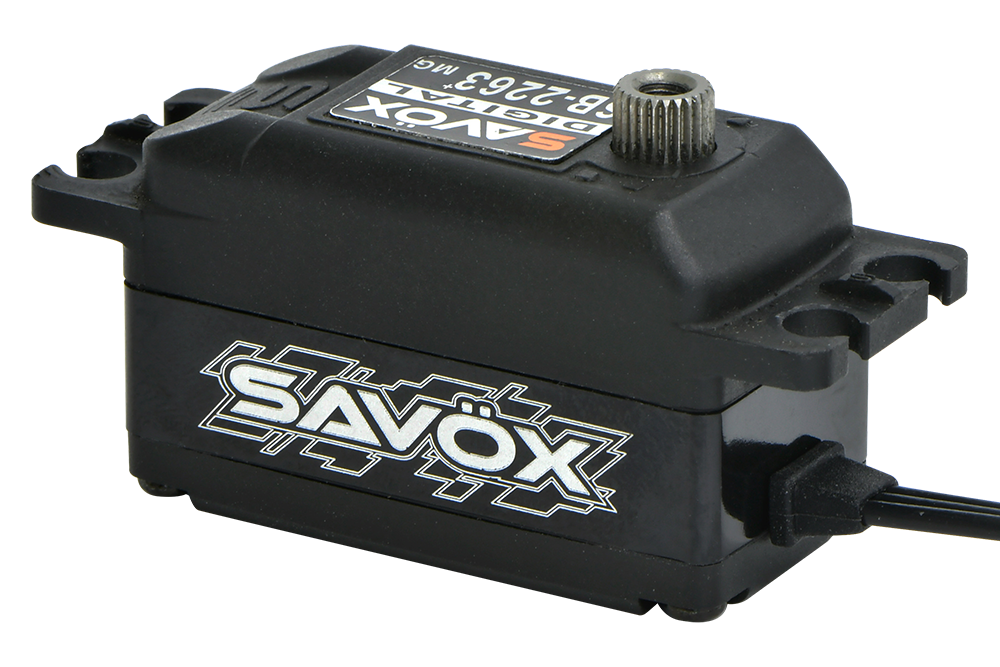

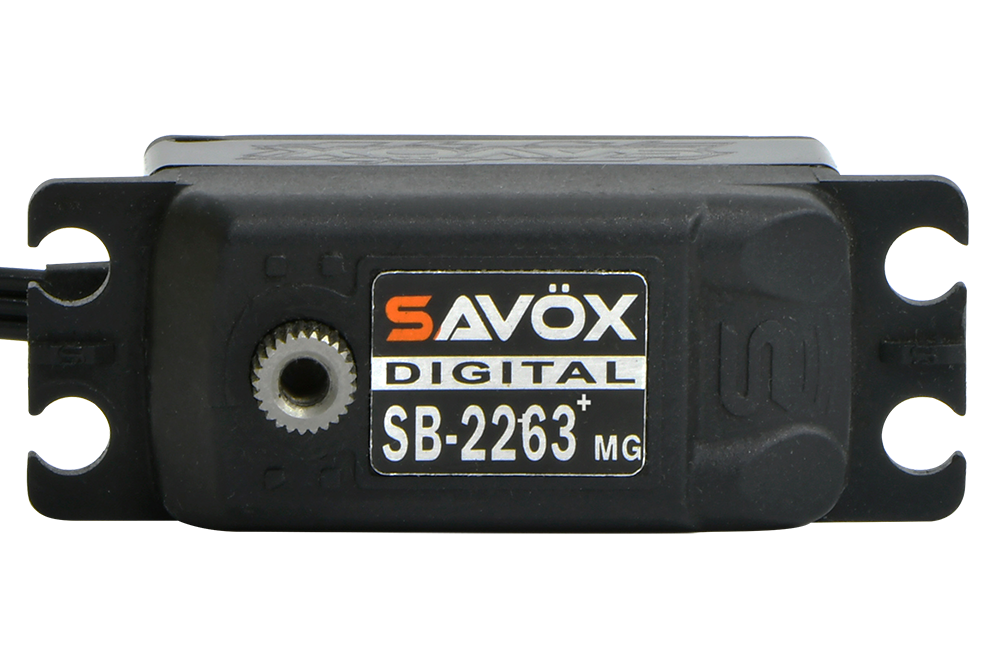

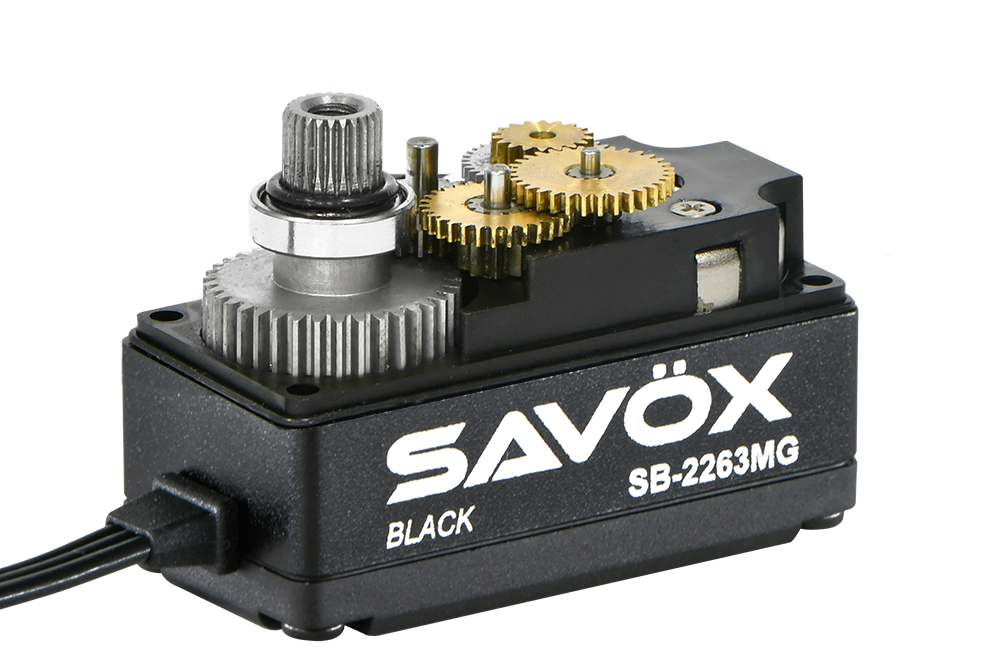

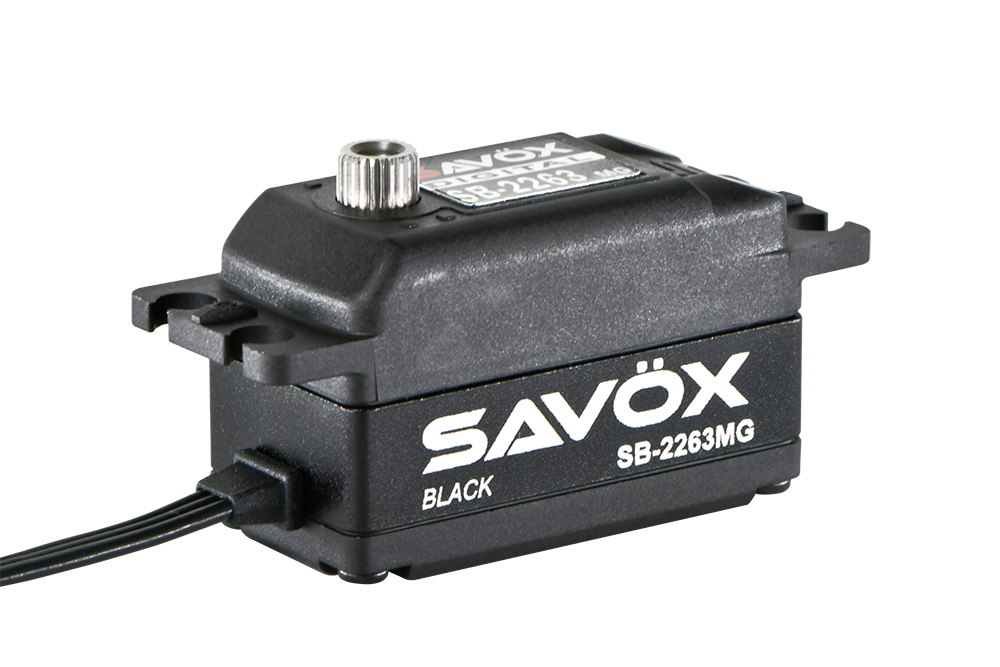

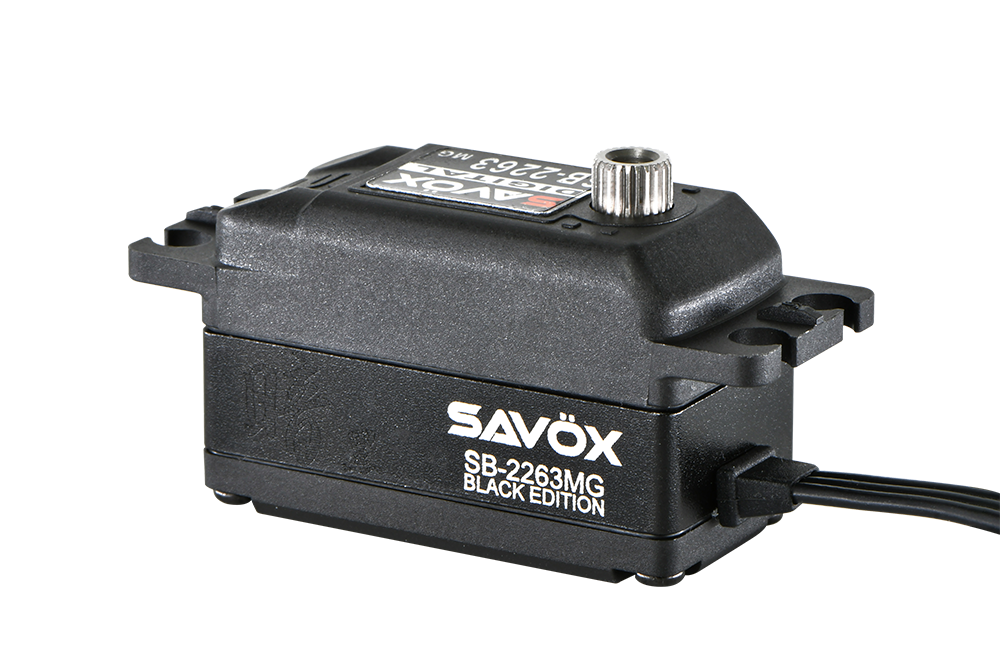

BLACK EDITION

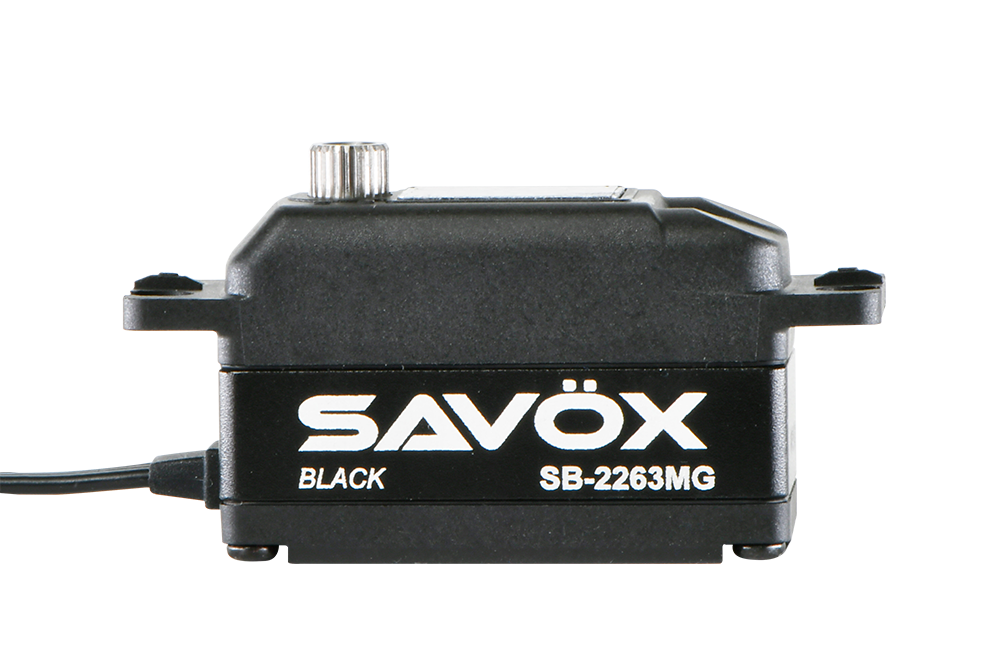

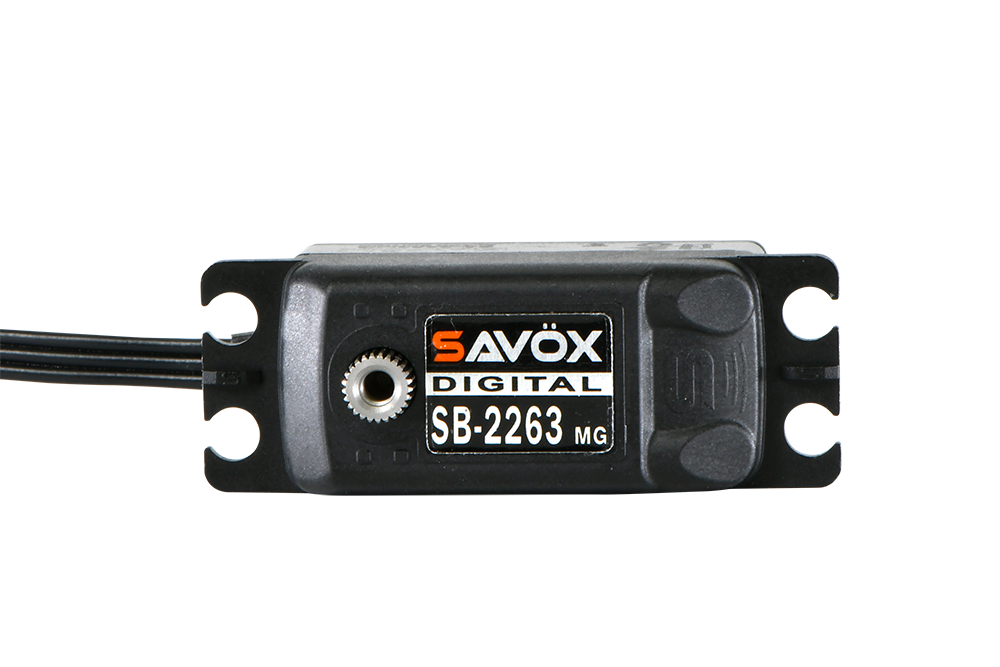

SB-2263MG BE
10.0 kg/cm |0.076 s/60° |6.0V
Original Brushless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLACK EDITION
ApplicationCAR / AIRPLANE
Servo SizeLow Profile
Operating Voltage4.8V-6.0V
Speed0.076 s/60°
Torque10.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeOriginal Brushless
Case TypeHybrid (Aluminum/Composite)
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 25.4 mm
Weight48 g
Gear TypeHeavy-Duty Metal
Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLACK EDITION
ApplicationCAR / AIRPLANE
Servo SizeLow Profile
Operating Voltage4.8V-6.0V
Speed @4.8V0.1 s/60°
Torque @4.8V8.0 kg/cm
Speed @6.0V0.076 s/60°
Torque @6.0V10.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeOriginal Brushless
Case TypeHybrid (Aluminum/Composite)
ProtectionWater Resistant
Dimensions40.8 x 20.2 x 25.4 mm
Weight48 g
Gear TypeHeavy-Duty Metal
CompabilitySanwa SSR
PCB Board12bit 4096, ADC, Softstart, Lock protection
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~130° (when 900→2100 μsec)
Operating Travel90° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length50 ±5 mm
ConnectorJR Connector
Stall Current @4.8V2900 mA
Operating Current @4.8V180 mA
Stall Current @6.0V3700 mA
Operating Current @6.0V220 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
