ORIGINAL LINE

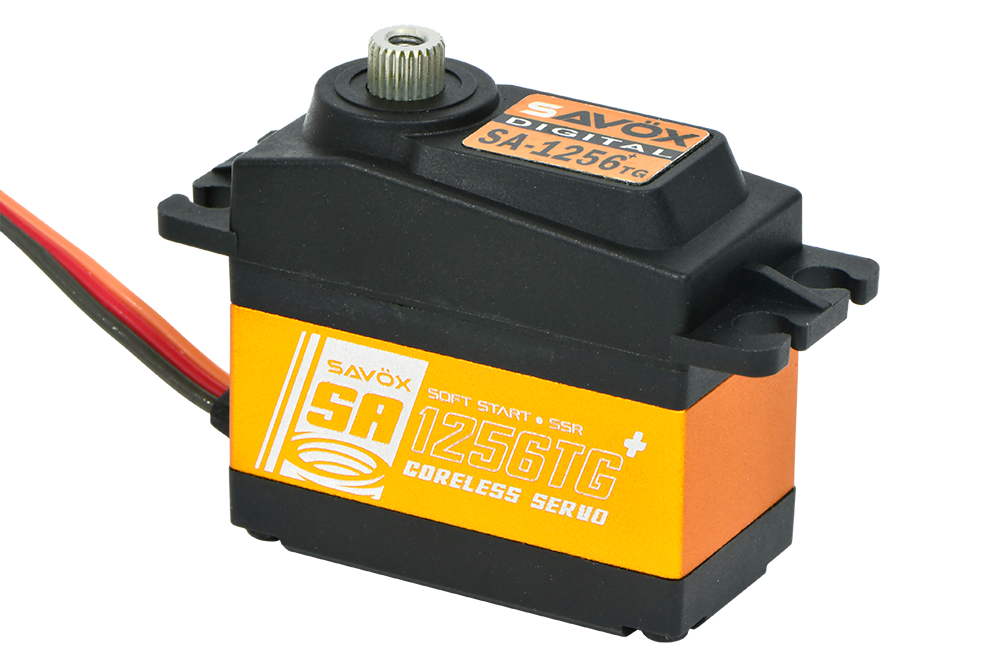

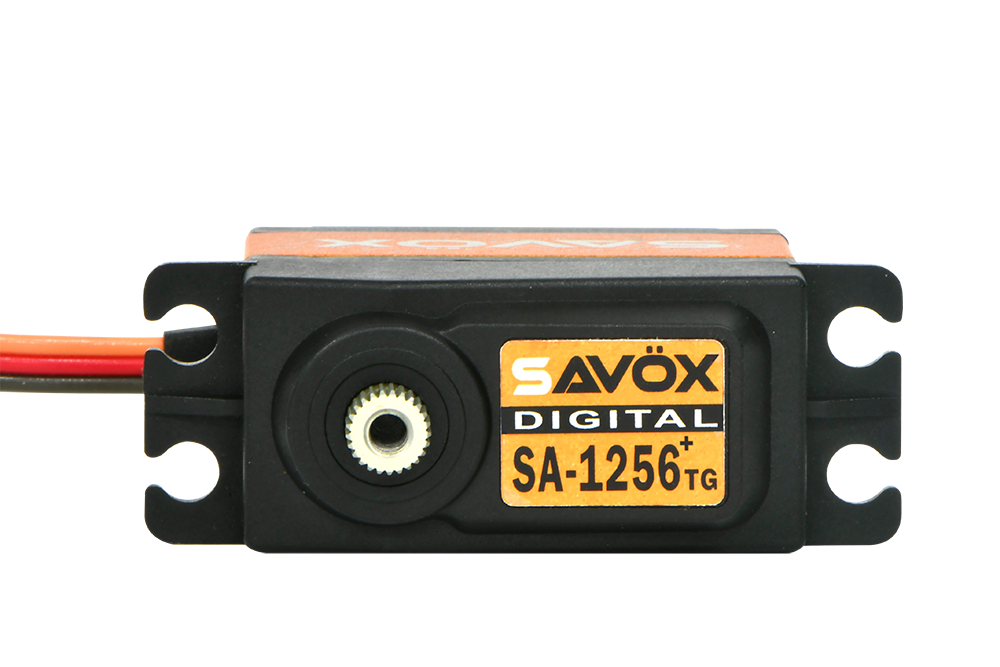

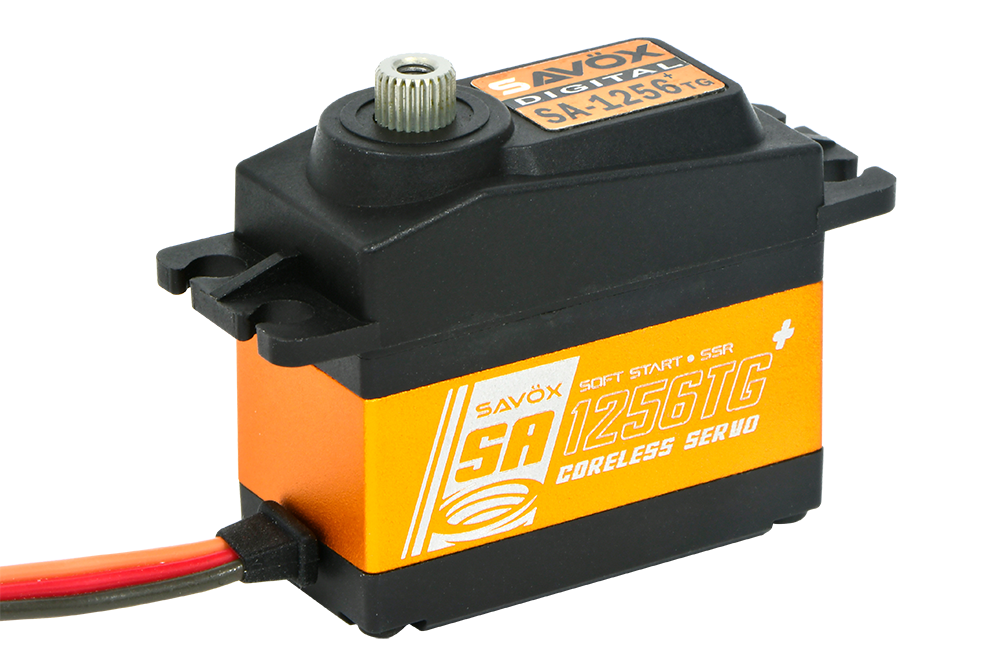

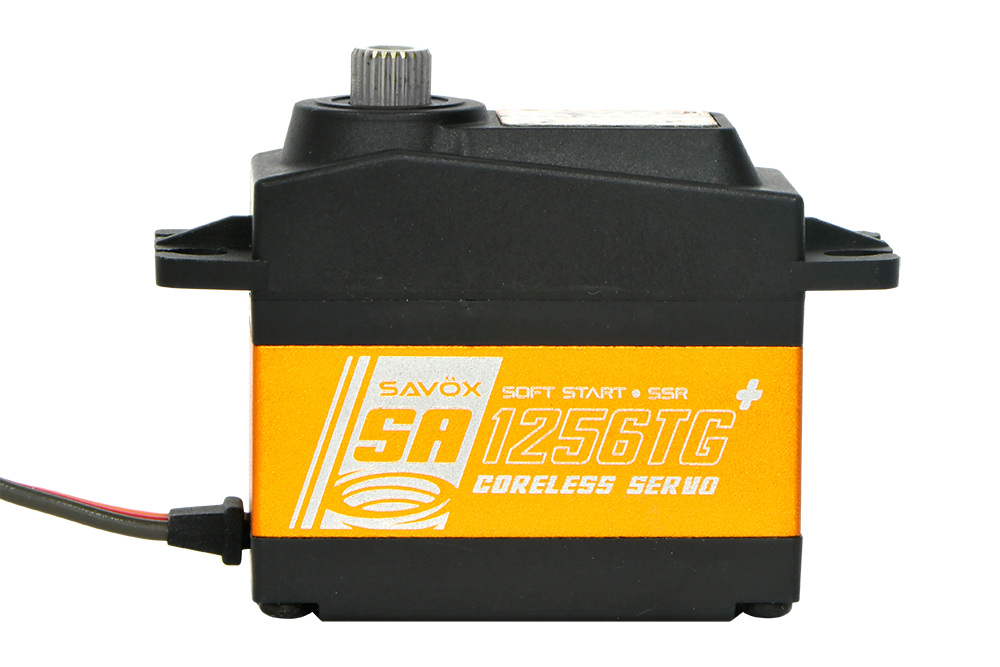

SA-1256TG+
20.0 kg/cm |0.15 s/60° |6.0V
Coreless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineORIGINAL LINE
ApplicationAIRPLANE
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed0.15 s/60°
Torque20.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions40.3 x 20.2 x 37.2 mm
Weight64 g

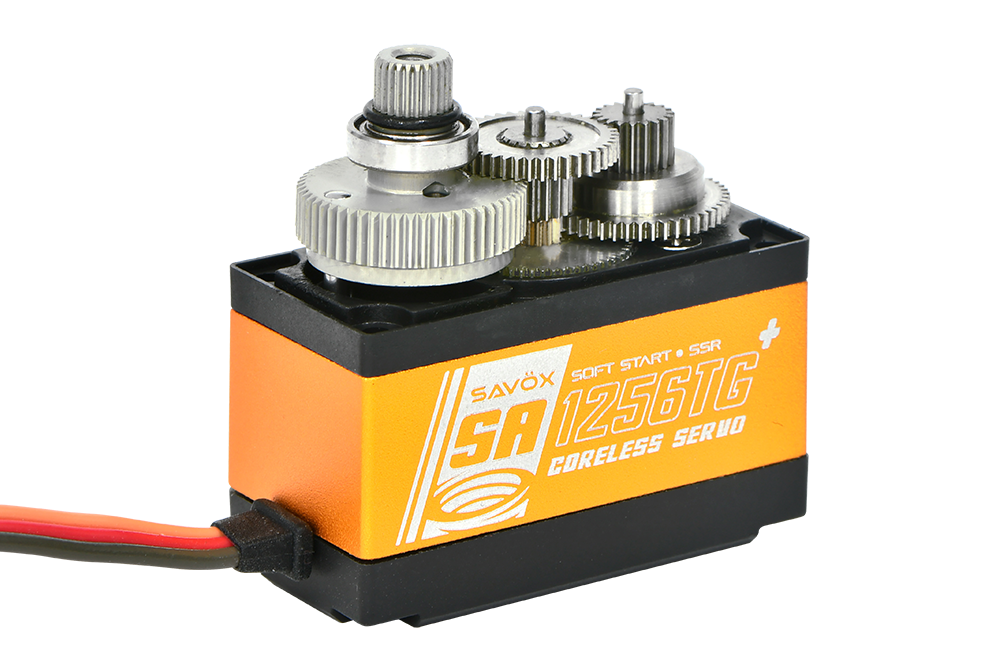

Gear TypeTitanium
Known for its iconic orange design, the Original Line covers a wide spectrum of performance - from reliable value models to proven competition-grade servos. These are the workhorses of the Savox lineup, used across countless RC platforms.
Whether you're racing, bashing, or boating, the Original Line offers dependable control backed by years of real-world use. It’s our most versatile range - and the backbone of the Team Savox ecosystem.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineORIGINAL LINE
ApplicationAIRPLANE
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed @4.8V0.18 s/60°
Torque @4.8V16.0 kg/cm
Speed @6.0V0.15 s/60°
Torque @6.0V20.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeCoreless
Case TypeHybrid (Aluminum/Composite)
ProtectionDust Resistant
Dimensions40.3 x 20.2 x 37.2 mm
Weight64 g
Gear TypeTitanium
CompabilitySanwa SSR
PCB Board12-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1500→2000 μsec)
Max Travel~130° (when 900→2100 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter22 AWG
Cable Length300 ±5 mm
ConnectorJR Connector
Stall Current @4.8V4000 mA
Operating Current @4.8V100 mA
Stall Current @6.0V5000 mA
Operating Current @6.0V120 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
