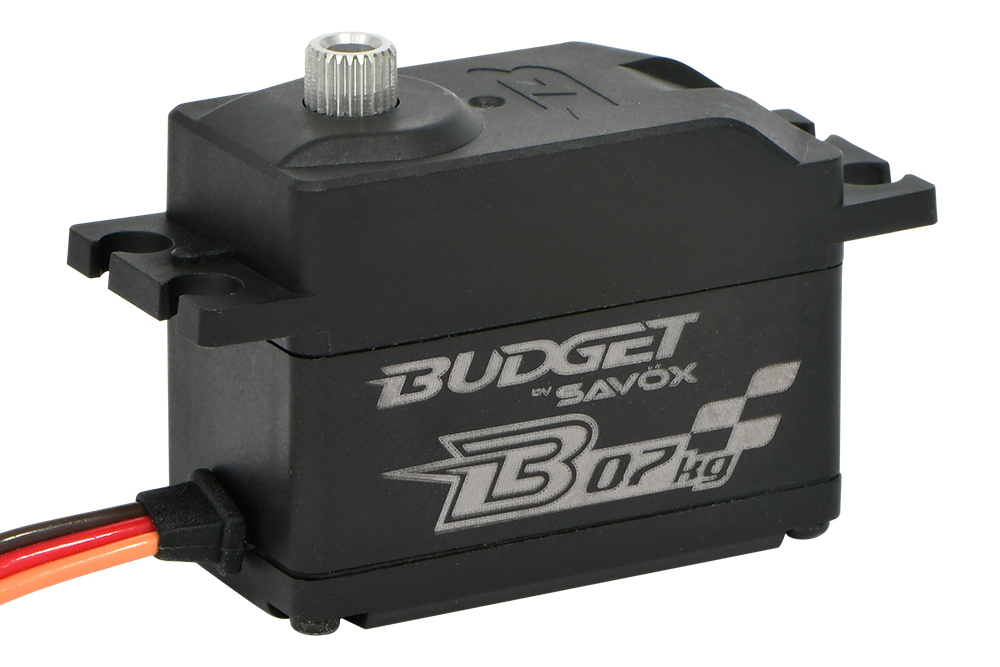

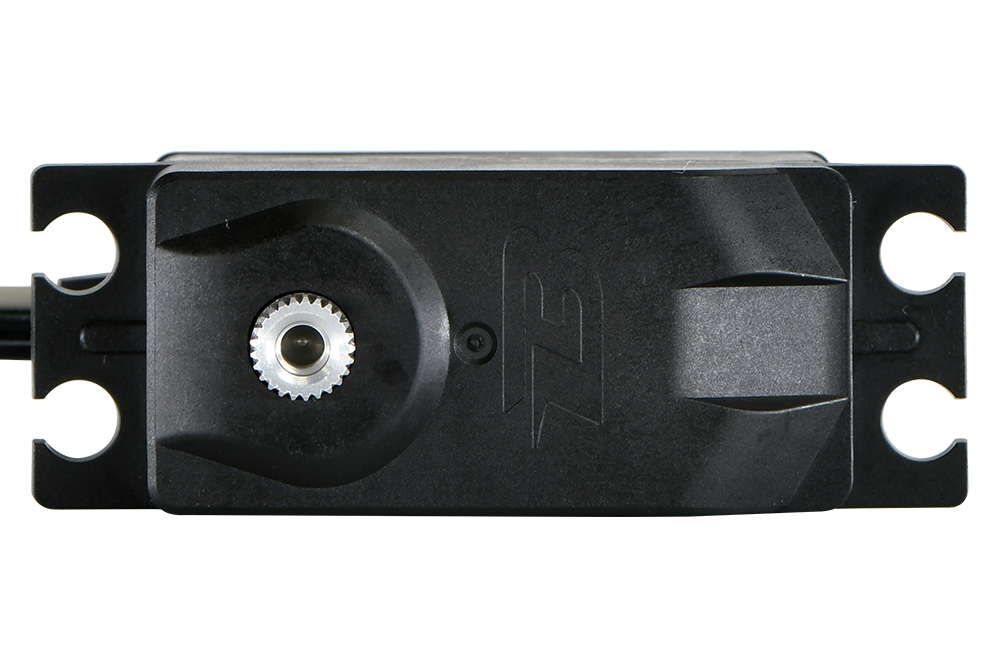

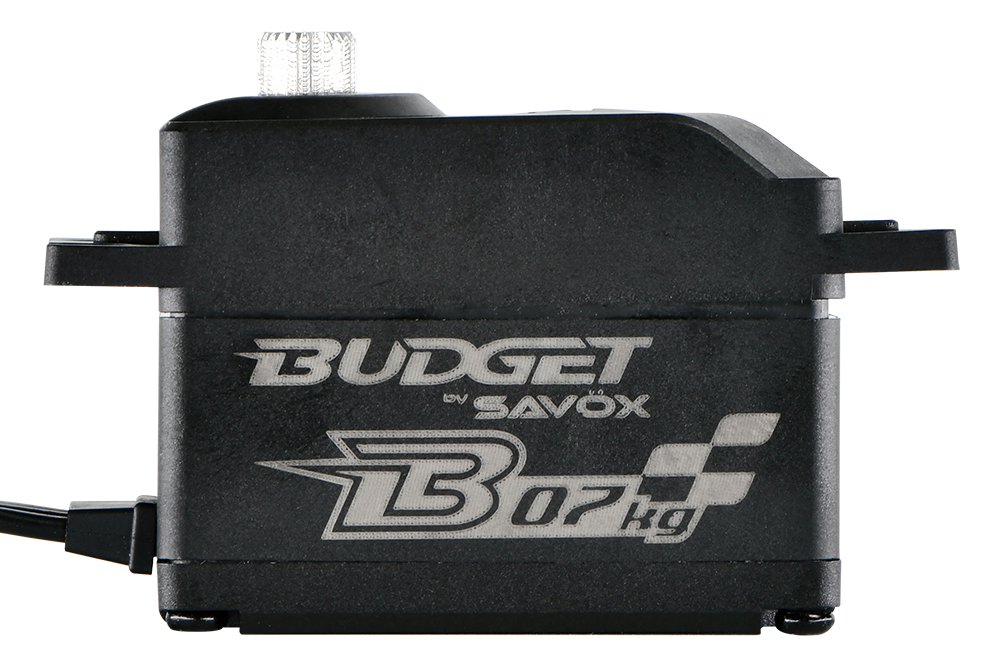

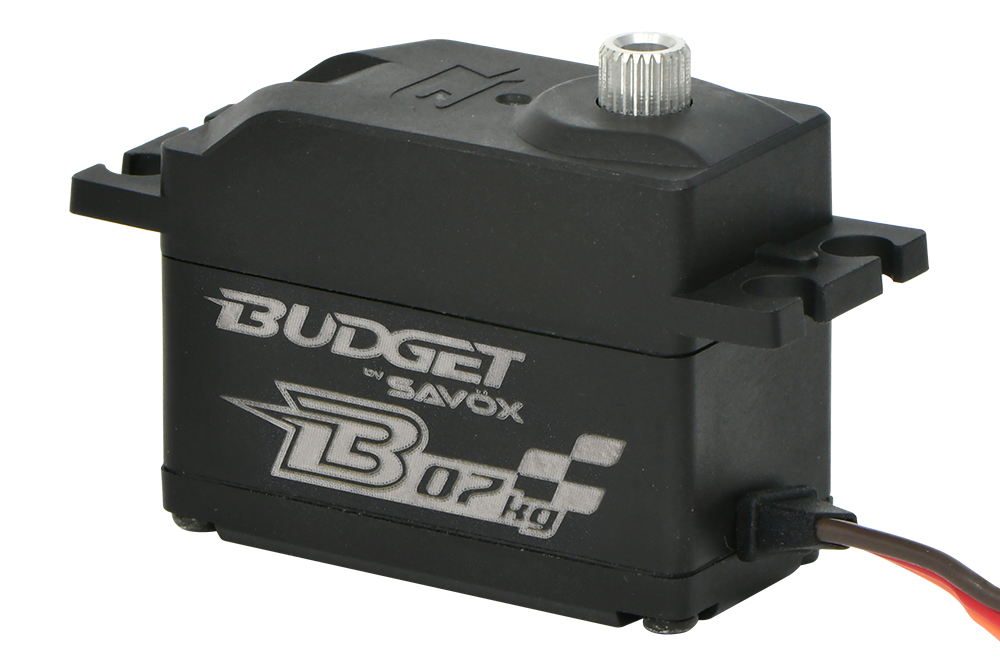

B-07KG

7.0 kg/cm |0.16 s/60° |6.0V

DC Motor

Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineHOBBY LINE
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed0.16 s/60°
Torque7.0 kg/cm
Amplifier TypeAnalog Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions40.8 x 20.2 x 31.7 mm
Weight45 g
Gear TypeHeavy-Duty Metal
B-07KG
B-07KG

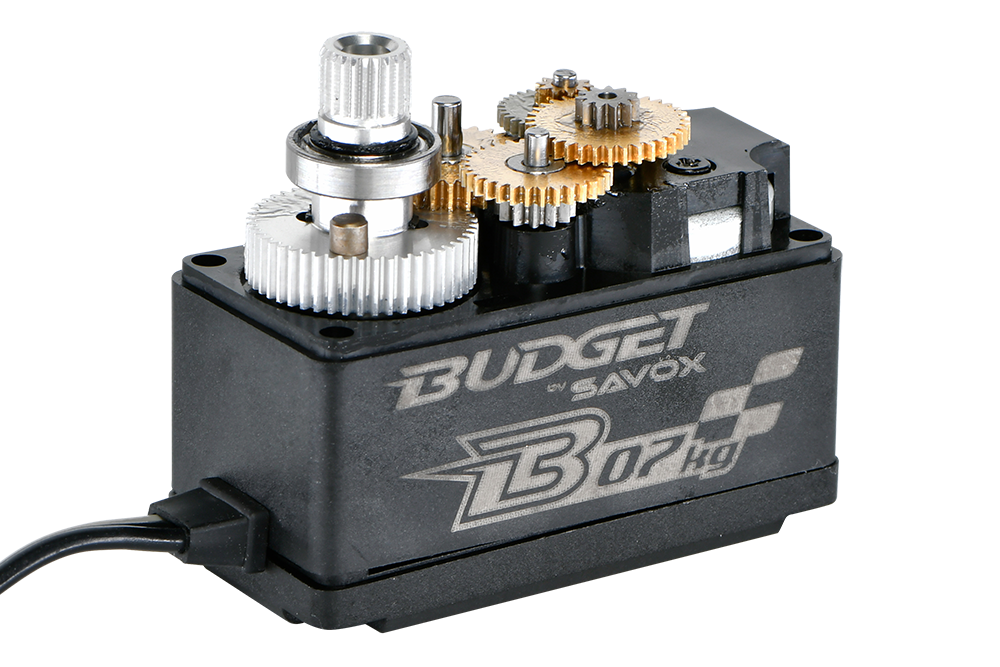

All-Metal Geartrain

Durable construction with full metal gears for long-lasting reliability.

Low-Profile Design

Slim housing fits tight chassis layouts like touring and drift cars.

7 kg/cm Torque @ 6V

Solid entry-level power for 1/10 surface models and RTR upgrades.

Hobby Line Value

Budget-friendly performance — ideal for new builders and everyday use.

Built for
Everyday RC

All-Metal. Low-Profile. Budget-Friendly.

Quick Look: B-07KG Budget Servo

Join Andy from Team Savox for a quick intro to the B-07KG — a reliable, all-metal low-profile servo designed for budget-conscious builders and everyday RC users.

If you’re new to RC or just looking for a no-nonsense servo that works straight out of the box, this short video gives you everything you need to know in under a minute.

HOBBY LINE

Simple, reliable, and budget-friendly - the Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling your first kit, these servos offer solid function at an accessible price.

Equipped with features like metal gears and smooth control response, Hobby Line servos are ideal for casual drivers, beginners, and weekend bashers. It's all about getting you driving with confidence – no stress, no fuss.

Size

Full specification

Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineHOBBY LINE
ApplicationCAR
Servo SizeStandard
Operating Voltage4.8V-6.0V
Speed @4.8V0.19 s/60°
Torque @4.8V5.5 kg/cm
Speed @6.0V0.16 s/60°
Torque @6.0V7.0 kg/cm
Amplifier TypeAnalog Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions40.8 x 20.2 x 31.7 mm
Weight45 g
Gear TypeHeavy-Duty Metal
CompabilityNormal
PCB BoardUACB
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionClockwise (when 1500→2000 μsec)
Max Travel~165° (when 700→2100 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @4.8V4800 mA
Operating Current @4.8V220 mA
Stall Current @6.0V6000 mA
Operating Current @6.0V240 mA
Idle Current6 mA
Dead Band Width20 μsec
Frequency Range50 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
