HOBBY LINE
B-05KG
5.0 kg/cm |0.16 s/60° |6.0V
DC Motor
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineHOBBY LINE
ApplicationCAR
Servo SizeMini
Operating Voltage4.8V-6.0V
Speed0.16 s/60°
Torque5.0 kg/cm
Amplifier TypeAnalog Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions35.0 x 15.0 x 27.2 mm
Weight25 g

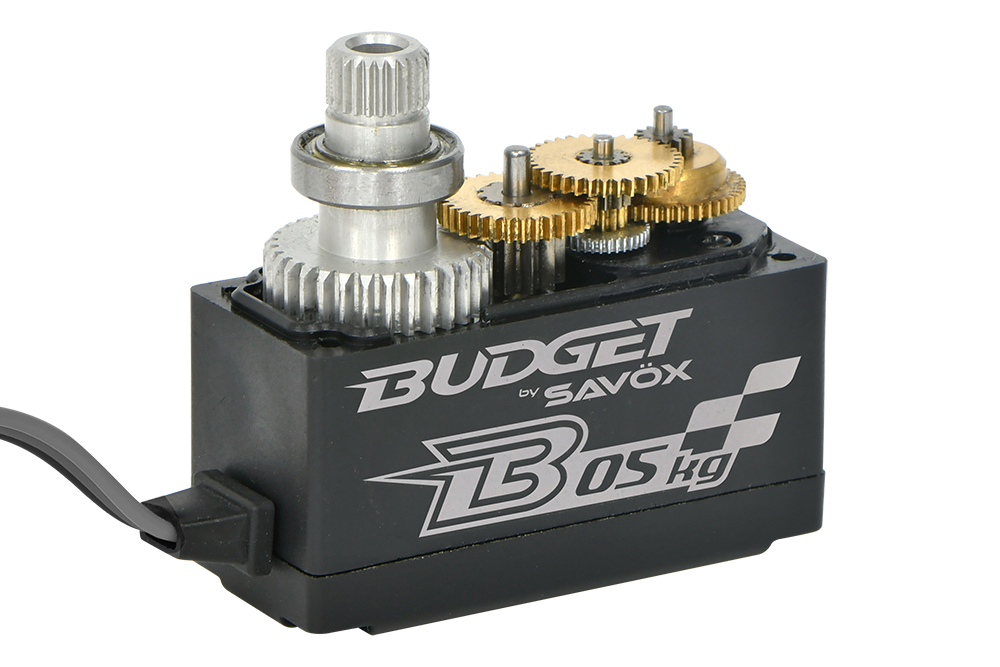

Gear TypeHeavy-Duty Metal
Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

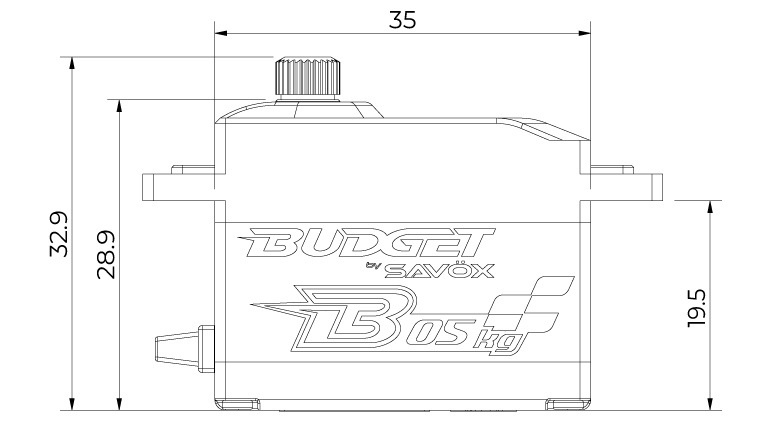

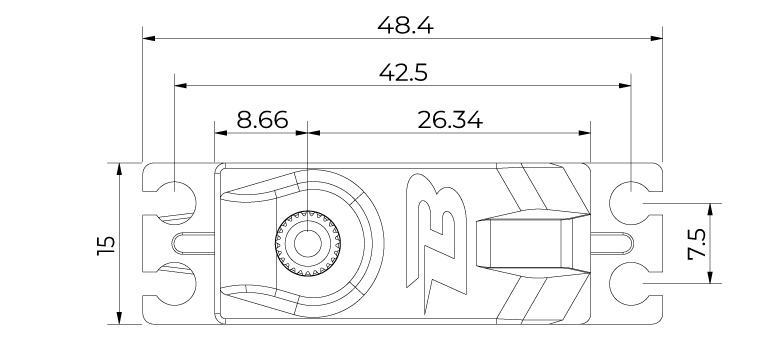

Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @4.8V
Torque @4.8V
Speed @6.0V
Torque @6.0V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineHOBBY LINE
ApplicationCAR
Servo SizeMini
Operating Voltage4.8V-6.0V
Speed @4.8V0.19 s/60°
Torque @4.8V4.0 kg/cm
Speed @6.0V0.16 s/60°
Torque @6.0V5.0 kg/cm
Amplifier TypeAnalog Controller
Motor TypeDC Motor
Case TypeComposite
ProtectionDust Resistant
Dimensions35.0 x 15.0 x 27.2 mm
Weight25 g
Gear TypeHeavy-Duty Metal
CompabilityNormal
PCB BoardUACB
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @4.8V
Operating Current @4.8V
Stall Current @6.0V
Operating Current @6.0V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionClockwise (when 1500→2000 μsec)
Max Travel~165° (when 700→2100 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length250 ±5 mm
ConnectorJR Connector
Stall Current @4.8V1200 mA
Operating Current @4.8V220 mA
Stall Current @6.0V1800 mA
Operating Current @6.0V240 mA
Idle Current6 mA
Dead Band Width20 μsec
Frequency Range50 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
